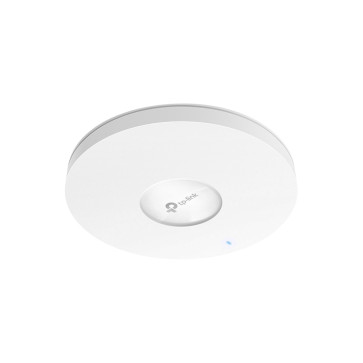

TP-Link EAP772 BE11000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point

TP-Link Omada EAP772 Access Point Specifications:

HARDWARE FEATURES
-------------------------------------------------------------
* Interface：1× 2.5G Ethernet Port

* Power Supply：
• 802.3at PoE
• 12V/2.5A DC

Note: DC Power adapter is not included. DC power interface: 12V, accepts 2.1 mm / 5.5 mm center-positive circular plug with 9 mm length.

* Max. Power Consumption:
• 25.44 W (For PoE);
• 22.57 W (For DC)

* Dimensions ( W x D x H ): 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)

* Antenna
• 2.4 GHz: 2× 4.0 dBi
• 5 GHz: 2× 5.0 dBi
• 6 GHz: 2× 5.0 dBi

* Bluetooth:
1 × 4.0 dBi, Bluetooth 5.2
*Firmware update may be required.

* Mounting: Ceiling / Wall / Junction Box Mounting (Kits Included)

WIRELESS FEATURES
-------------------------------------------------------------
* Coverage: 140㎡(1500 ft²)

* Concurrent Clients: 380+

* Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be

* Frequency：6 GHz, 5 GHz, and 2.4 GHz

* Signal Rate: 688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz) + 5765 Mbps (6 GHz)

* Wireless Functions：
• MLO‡
• 4K-QAM‡
• Seamless Roaming(802.11k/v/r)
• MU-MIMO‡
• EHT320‡
• Mesh△
• BSS Coloring‡
• OFDMA‡
• Load Balance
• Band Steering
• Beamforming
• Airtime Fairness
• Multiple SSIDS:24(8 on each band)
• Wireless Schedule
• Reboot Schedule
• QoS(WMM)
• Rate Limit
• Static IP/Dynamic IP
• RADIUS Accounting
• MAC Authentication

* Wireless Security
• Captive Portal Authentication
• Access Control
• Maximum number of MAC Filter: 4,000
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

MANAGEMENT
-------------------------------------------------------------
* Omada App：Yes

* Centralized Management
• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller

* Cloud Access：Yes. Require the use of an Omada controller.

* Email Alerts: Yes

* LED ON/OFF Control: Yes

* Management MAC Access Control: Yes

* SNMP: v1, v2c, v3

* System Logging Local/Remote Syslog: Yes

* Web-based Management: Yes

OTHERS
-------------------------------------------------------------
* Certification: CE, FCC, RoHS, IC

* Package Content
• EAP772
• Installation Guide
• Ceiling/Wall/Junction Box Mounting Kits
Note: Power Adapter is NOT included.

* Environment
• Operating Temperature: 0 °C–40 °C (32 °F–104 °F);
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Operating Humidity: 10%–90% non-condensing;
• Storage Humidity: 5%–90% non-condensing;
