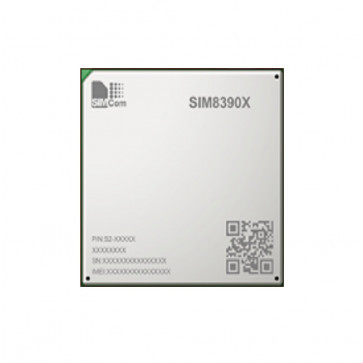

SIMCOM SIM8390 5G Sub6 & mmWave Module
* Form Factor: LGA
* Target market: Europe and APAC
* 5G Dual-mode: SA/NSA
* GNSS: GPS/Gallileo/QZSS/GLONASS/Beidou
* 5G Peak Speeds: 3.4Gbps(DL)/1Gbps(UL)
* Firmware Upgrade: USB
Availability: Out of stock
SIMCOM SIM8390 5G Module Specifications:
* Product type: 5G Cellular Module
* Form Factor: LGA Package
* Chipset: Qualcomm Snapdragon SDX75
* Dimensions(mm): 53.0*46.0*3.1
* Frequency Bands:
- Sub-6G: n1,n3,n5,n7,n8,n20,n26,n28,n38,n40,n41,n48,n77,n78,n79
- LTE-FDD: B1,B3,B5,B7,B8,B18,B19,B20,B26,B28,B32
- LTE-TDD: B38,B39,B40,B41,B42,B43,B46,B48
- WCDMA: B1,B5,B8
* GNSS: GPS/Gallileo/QZSS/GLONASS/Beidou
* Temperature: -30℃ ~ +70℃
* Supply Voltage(V): 3.135 ~ 4.4
* Data Transfer
- Sub-6G SA: 2.4Gbps(DL)/1Gbps(UL)
- Sub-6G NSA: 3.4Gbps(DL)/600Mbps(UL)
- LTE: 1.6Gbps(DL)/200Mbps(UL)
- HSPA+: 42Mbps (DL)/5.76Mbps(UL)
* Protocol: TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/MQTTS/DNS/SSL3.0
* TLS: support
* File System: support
* FOTA: support
* Android RIL: Android 6/7/8/9
* USB Driver: Microsoft Windows Win7/Win8/Win10/Linux/Android
* MBIM: Win8/Win10
* NDIS: Linux/Win7/Win8/Win10
* Firmware Upgrade: USB
* Interfaces
- SIM Card: 1.8V/2.95V
- USB: ●
- PCM: ●
- I2C: ●
- Diversity Receiver: ●
* Certifications
- Regulatory: CE(RED)*/FCC*/RoHS*/REACH*
