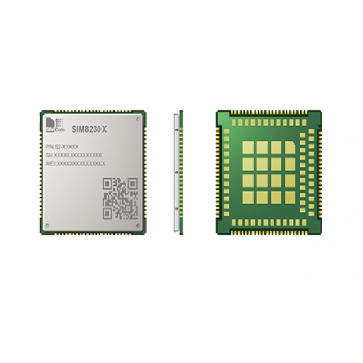

SIMCOM SIM8230G 5G NR/LTE-FDD/LTE-TDD Module

SIMCOM SIM8230G is a multi-band 5G NR/LTE-FDD/LTE-TDD module which supports R17 5G SA.

With a rich protocols, it is integrated with interfaces such as PCIe, USB2.0, GPIO etc. This module provides applications with great flexibility and ability of integration.

SIMCOM SIM8230G adopts LGA form factor. AT commands of SIM8230G are compatible with SIM7600/8200/8260 series modules. This also minimizes costs for customer and shortens time to market.

It is designed for applications that need huge data transmission in various wireless situations. Due to its high efficiency, security and flexibility, this module suits various applications.

SIMCOM SIM8230G 5G module Specifications：

* Product type: 5G NR Module

* Chipset: Qualcomm Snapdragon SDX35

* Dimensions(mm): 30.0*30.0*2.5

* Frequency Bands:
- 5G SA: n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n30/n38/n40/n41/n48/n66/n70/n71/n77/n78
- LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B30/B66/B71
- LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48

* GNSS: support

* Temperature: -40℃ ~ +85℃

* Supply Voltage(V): 3.3 ~ 4.4

* Data Transfer
- Sub-6G SA: Up to 220Mbps(DL)/100Mbps(UL)
- LTE: 150Mbps(DL)/50Mbps(UL)

* Software Features
- Protocol: TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/MQTTS/DNS/SSL3.0
- TLS
- File System
- FOTA
- Android RIL: Android 6/7/8/9
- USB Driver: Microsoft Windows Win7/Win8/Win10/Win11/Linux/Android
- MBIM: Win8/Win10
- NDIS: Linux/Win7/Win8/Win10
- Firmware Upgrade: USB

* Interfaces
- SIM Card: 1.8V/2.95V
- USB
- PCM
- I2C
- Diversity Receiver

* Certifications
- Regulatory: CE(RED)*/GCF*/FCC*/PRCRB*/RoHS*/REACH*
