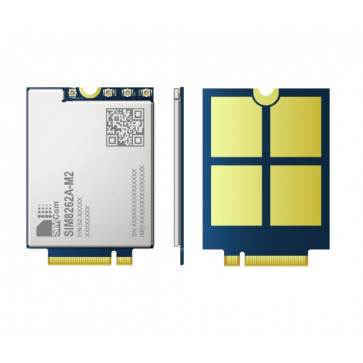

SIMCOM SIM8262A-M2 5G Sub-6G M.2 Module

SIMCOM SIM8262A-M2 is a new multi-band 5G NR/LTE-FDD/LTE-TDD/HSPA+ module which supports R16 5G NSA/SA.

SIMCOM SIM8262A-M2 module has strong extension capability with abundant interfaces including PCIe, USB3.1, GPIO etc. The module provides much flexibility and ease of integration for customer's applications.

SIMCOM SIM8262A-M2 5G module adopts M2 form factor. AT commands of the SIM8262A-M2 are compatible with SIM7912G/SIM8200X-M2 series modules. This also minimizes the investments of customers and enables a short time-to-market.

It is designed for applications that need high throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for many applications.

SIMCOM SIM8262A-M2 5G Module Specifications：

* Product type: 5G Cellular Module

* Form Factor: M.2

* Chipset: Qualcomm Snapdragon X62

* Dimensions(mm): 42.0*30.0*2.3

* Frequency Bands:
- Sub-6G: n1,n2,n5,n7,n8,n12,n13,n14,n18,n20,n25,n26, n30,n38,n41,n48,n66,n71,n77,n78,n79
- LTE-FDD: B1/B2/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B29/B30/B66/B71
- LTE-TDD: B38/B41/B42/B43/B46/B48
- WCDMA: B1/B2/B4/B5/B8

* GNSS: GPS/Gallileo/QZSS/GLONASS/Beidou

* Temperature: -30℃ ~ +70℃

* Supply Voltage(V): 3.135 ~ 4.4

* Data Transfer
- Sub-6G SA: 2.4Gbps(DL)/1Gbps(UL)
- Sub-6G NSA: 3.4Gbps(DL)/600Mbps(UL)
- LTE: 1.6Gbps(DL)/200Mbps(UL)
- HSPA+: 42Mbps (DL)/5.76Mbps(UL)

* Protocol: TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/MQTTS/DNS/SSL3.0

* TLS: support

* File System: support

* FOTA: support

* Android RIL: Android 6/7/8/9

* USB Driver: Microsoft Windows Win7/Win8/Win10/Linux/Android

* MBIM: Win8/Win10

* NDIS: Linux/Win7/Win8/Win10

* Firmware Upgrade: USB

* Interfaces
- SIM Card: 1.8V/2.95V
- USB: ●
- PCM: ●
- I2C: ●
- Diversity Receiver: ●

* Certifications
- Regulatory: CE(RED)*/FCC*/RoHS*/REACH*
