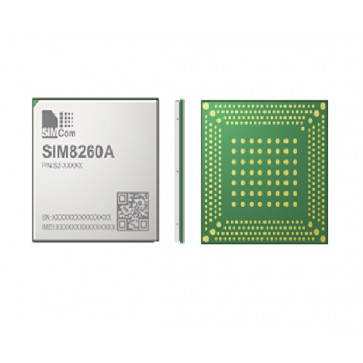

SIMCOM SIM8260A 5G Sub-6G LGA Module

SIMCOM SIM8260A is a new multi-Band 5G NR/LTE-FDD/LTE-TDD/HSPA+ module which supports R16 5G NSA/SA.

SIMCOM SIM8260A module has strong extension capability with abundant interfaces including PCIe, USB3.1, GPIO etc. The module provides much flexibility and ease of integration for customer's applications.

SIMCOM SIM8260A adopts LGA form factor. AT commands of the SIM8260A are compatible with SIM7912G/SIM8200X-M2 series modules. This also minimizes the investments of customers and enables a short time-to-market.

It is designed for applications that need high throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for many applications.

SIMCOM SIM8260A 5G Module Specifications：

* Product type: 5G Cellular Module

* Form Factor: LGA Package

* Chipset: Qualcomm Snapdragon X62

* Dimensions(mm): 41.0*43.6*2.8

* Frequency Bands:
- Sub-6G: n1/n2/n5/n7/n12/n13/n14/n25/n26/n29/n30/n38/n41/n48/n66/n71/n77/n78/n79
- LTE-FDD: B1/B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B29/B30/B66/B71
- LTE-TDD: B38/B41/B42/B43/B46/B48
- WCDMA: B1/B2/B4/B5

* GNSS: GPS/Gallileo/QZSS/GLONASS/Beidou

* Temperature: -30℃ ~ +70℃

* Supply Voltage(V): 3.135 ~ 4.4

* Data Transfer
- Sub-6G SA: 2.4Gbps(DL)/1Gbps(UL)
- Sub-6G NSA: 3.4Gbps(DL)/600Mbps(UL)
- LTE: 1.6Gbps(DL)/200Mbps(UL)
- HSPA+: 42Mbps (DL)/5.76Mbps(UL)

* Protocol: TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/MQTTS/DNS/SSL3.0

* TLS: support

* File System: support

* FOTA: support

* Android RIL: Android 6/7/8/9

* USB Driver: Microsoft Windows Win7/Win8/Win10/Linux/Android

* MBIM: Win8/Win10

* NDIS: Linux/Win7/Win8/Win10

* Firmware Upgrade: USB

* Interfaces
- SIM Card: 1.8V/2.95V
- USB: ●
- PCM: ●
- I2C: ●
- Diversity Receiver: ●

* Certifications
- Regulatory: CE(RED)*/FCC*/RoHS*/REACH*
