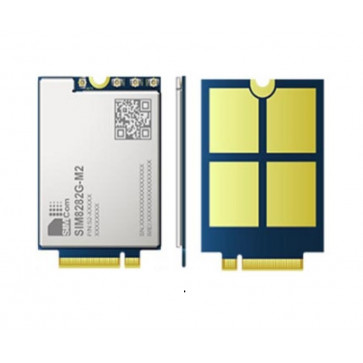

SIMCOM SIM8282G-M2 5G NR Module
* Form factor: M.2
* Support 5G NR/LTE-FDD/LTE-TDD/HSPA+ networks
* 5G Sub-6G data rates: 10Gbps(DL)/500Mbps(UL)
* Chipset: Qualcomm Snapdragon X62
* Firmware Upgrade via USB
Availability: Out of stock
$899.00
Details
Details
SIMCOM SIM8282G-M2 is a 5G multiband LTE-FDD/LTE-TDD/HSPA+ module, which support NSA/SA. Snapdragon X65 is the world's first modem and RF system that supports the 10Gbps 5G transmission rate and 3GPP Release 16. SIM8282G-M2 equipped with SX65 can cover all major 5G bands including MMW and Sub-6GHz bands and their combinations. FDD and TDD give carriers extreme flexibility through the use of fragmented 5G spectrum assets. Meanwhile, it will have further development in the fields of mobile broadband, computing, extended reality, industrial Internet of Things, 5G enterprise private networks and fixed wireless access. In addition, SIM8280, another 5G module based on Snapdragon X65, will be launched this year.
Based on Qualcomm's fourth-generation 5G modem-to-antenna solution Snapdragon X65, SIMCOM SIM8282G-M2 has powerful scalability and various interfaces, including PCIe,USB3.1,GPIO, etc. Its AT command is compatible with SIM8202G/SIM8200X-M2 modules, so it can minimize the investment cost and shorten the time to market.
SIMCOM SIM8282G-M2 5G module Specifications:
* Product type: 5G Wireless Module
* Chipset: Qualcomm Snapdragon X65
|
Product |
SIMCOM SIM8282G-M2 |
|
|
Form Factor |
M.2 |
|
|
Dimensions(mm) |
42.0*30.0*2.3 |
|
|
Frequency Bands |
Sub-6G |
n1,n2,n3,n5,n7,n8,n12,n20,n28,n38,n40,n41,n48,n66,n71,n77,n78,n79 |
|
Sub-6G(NSA) |
n38,n41,n77.n78.n79 |
|
|
LTE-FDD |
B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 |
|
|
LTE-TDD |
B34/B38/B39/B40/B41/B42/B43/B48 |
|
|
LAA |
B46 |
|
|
WCDMA |
B1/B2/B3/B4/B5/B8 |
|
|
GNSS |
● |
|
|
Temperature |
-30℃ ~ +70℃ |
|
|
Electrical Features |
||
|
Supply Voltage(V) |
3.135 ~ 4.4 |
|
|
Data Transfer |
||
|
Sub-6G |
2.4Gbps(DL)(optional up to 4.8Gbps)/1Gbps(UL) |
|
|
LTE |
1Gbps(DL)(optional up to 2Gbps)/200Mbps(UL) |
|
|
HSPA+ |
42Mbps (DL)/5.76Mbps(UL) |
|
|
Software Features |
||
|
Protocol |
TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/MQTTS/DNS/SSL3.0 |
|
|
TLS |
● |
|
|
File System |
● |
|
|
FOTA |
● |
|
|
Android RIL |
Android 6/7/8/9 |
|
|
USB Driver |
Microsoft Windows Win7/Win8/Win10/Linux/Android |
|
|
MBIM |
Win8/Win10 |
|
|
NDIS |
Linux/Win7/Win8/Win10 |
|
|
Firmware Upgrade |
USB |
|
|
Interfaces |
||
|
SIM Card |
1.8V/2.95V |
|
|
USB |
● |
|
|
PCIe |
● |
|
|
PCM |
● |
|
|
I2C |
● |
|
|
Certifications |
||
|
Regulatory |
CCC*/SRRC*/CTA*/RoHS*/REACH*/CE*/FCC*/JATE*/TELEC* |
|
