Quectel RM500Q-AE 5G NR Module

* Quectel 5G Wireless Module


* Chipset: Qualcomm Snapdragon X55 5G modem


* Cover global 5G frequency bands


* Multi-gigabit data rates, up to 5.0Gbps


* DL 4 × 4 MIMO for 5G NR and LTE-A bands


* Multi-constellation GNSS capabilities


* Abundant interfaces: USB 3.0/3.1, PCIe 3.0 and eSIM


* Target region: North America/Europe

Sign up for price alert

Availability: In stock

Regular Price: $699.00

Special Price $369.00

Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!

Details
Details

Quectel RM500Q-AE is a 5G module optimized specially for IoT/eMBB applications. Adopting the 3GPP Release 15 LTE technology, it supports both 5G NSA and SA modes. Designed in an M.2 form factor, Quectel RM500Q-AE is compatible with Quectel LTE-A Cat 6 module EM06, Cat 12 module EM12 and EM120R-GL, and Cat 16 module EM160R-GL, which facilitates customers' migration from LTE-A to 5G.


The global version RM500Q-AE nearly covers all the mainstream carriers worldwide. The 5G module supports Qualcomm® IZat™ location technology Gen9C Lite (GPS, GLONASS, BeiDou/Compass and Galileo). The integrated GNSS receiver greatly simplifies the product design and provides quicker, more accurate and more dependable positioning capability.


A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB and PCIe drivers for Windows, Linux and Android) extend the applicability of the module to a wide range of M2M and IoT applications such as industrial router, home gateway, STB, industrial laptop, consumer laptop, industrial PDA, rugged tablet PC, video surveillance and digital signage.

Key Benefits

* 5G/4G/3G Multi-mode module with M.2 form factor, optimized for IoT and eMBB applications

* Worldwide 5G and LTE-A coverage

* Both NSA and SA modes supported

* Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment

* Feature refinements: DFOTA and VoLTE (optional)

Quectel RM500Q-AE 5G Module Specifications:

* Target Region/Operator: North America/Europe

* Frequency Bands
- 5G NR NSA: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n66/n71/n77/n78/n79
- 5G NR SA: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n66/n71/n77/n78/n79
- LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71
- LTE-TDD: B34/B38/39/B40/B41/B42/B43/B48
- LTE DL 4 × 4 MIMO: B1/B2/B3/B4/B7/B25/B30/B32/B34/B38/39/B40/B41/B42/B43/B48/B66
- LAA: B46 (only support 2 × 2 MIMO)
- WCDMA: B1/B2/B3/B4/B5/B6/B8/B19
- MIMO: DL: 4 × 4
- GNSS: GPS/GLONASS/BeiDou (Compass)/Galileo"


* Certifications
- Carrier: Verizon*/T-mobile*/ AT&T
- Regulatory:
> Global: GCF*
> Europe: CE*
> North America: FCC*/IC*/PTCRB*"
- Others: RoHS/WHQL

* Data Transmission (Max.) ②
- 5G SA Sub-6 Data Rate: DL 2.1 Gbps; UL 900 Mbps
- 5G NSA Sub-6 Data Rate: DL 2.5 Gbps; UL 650 Mbps
- LTE Data Rate: DL 1.0 Gbps; UL 200 Mbps"
- WCDMA Data Rate: DL 42 Mbps; UL 5.76 Mbps


* Interfaces
- (U)SIM x 1
- USB 2.0 x 1
- USB 3.0/3.1 x 1
- PCIe 3.0 x 1
- PCM x 1
- Antenna x 4

* Voice
- VoLTE: Digital Audio and VoLTE (Voice over LTE) (optional)

* Enhanced Features
- e-SIM: External eSIM
- DTMF*
- DFOTA*
- (U)SIM Card Detection


* Drivers
- USB Serial Driver: Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x/5.x/6.x/7.x/8.x/9.x/10
- GNSS Driver: Android 4.x/5.x/6.x/7.x/8.x/9.x/10
- RIL Driver: Android 4.x/5.x/6.x/7.x/8.x/9.x/10
- NDIS Driver: Windows 7/8/8.1/10
- MBIM Driver: Windows 7/8/8.1/10、Linux 3.18–5.4
- GobiNet Driver: Linux 2.6–5.4
- QMI_WWAN Driver: Linux 3.4–5.4"

* Electrical Features
- Supply Voltage Range: 3.135–4.4 V, typical 3.7 V
- Power Consumption: TBD @ Power off
- TBD @ Sleep, typical.
- TBD @ Idle"

* Temperature Range
- Operation Temperature: -20 °C to +70 °C
- Extended Temperature: -40 °C to +85 °C"

* Dimensions: 52.0 × 30.0 × 2.3mm

* Weight: 8.7g

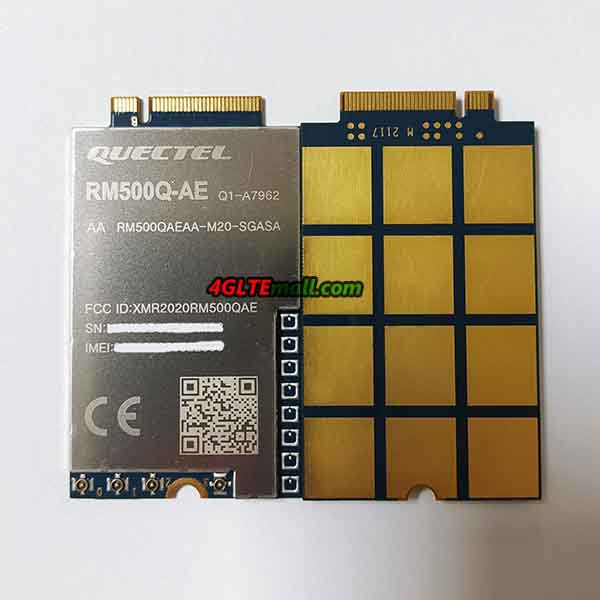

Quectel RM500Q-AE 5G module Image:

Quectel RM500Q-AE 5G module
