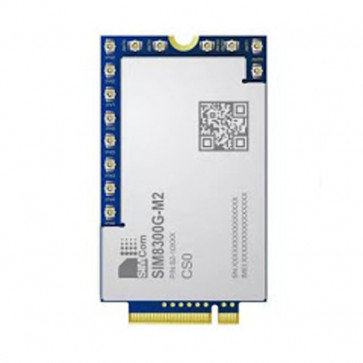

SIMCOM SIM8300-M2 5G Sub-6Ghz and mmWave Module

* SIMCOM 5G NR Module


* Support Sub-6G/mmWave/LTE-FDD/LTE-TDD/WCDMA Networks


* 5G DL up to 4Gbps, UL up to 450Mbps


* GNSS:GPS/GLONASS/BeiDou/Galileo/QZSS


* Chipset: Qualcomm SDX55 modem

Sign up for price alert Sign up to get notified when this product is back in stock

Availability: Out of stock

$999.00

Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!

Details
Details

SIMCOM SIM8300-M2 is Multi-Band 5G NR/LTE-FDD/LTE-TDD/HSPA+ module solution in M.2 type which supports R15 5G NSA/SA up to 4.0 Gbps data transfer. The package of SIMCOM SIM8300-M2 5G module is in M.2 form factor. This also minimize the investments of customers, and enables a short time-to-market.

SIMCOM SIM8300-M2 5G Module Specifications:


* SIMCOM 5G Module

* Chipset: Qualcomm Snapdragon X55 Modem

* Form factor/package: M.2

* Network technology: Sub-6G/mmWave/LTE-FDD/LTE-TDD/WCDMA

* Support 5G NR Band:

* Support 4G LTE FDD Band: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71

* Support 4G LTE TDD Band: B34/B38/B39/B40/B41/B42/B43/B48

* Support 3G WCDMA Band: B1/B2/B3/B4/B5/B8

* Data rates:
- Sub‐6G: Downlink up to 4 Gbps, Uplink up to 450Mbps
- LTE CAT22: Downlink up to 2.4Gbps, Uplink up to 200Mbps
- HSPA+: Downlink up to 42.0Mbps, Uplink up to 5.76Mbps

* Support UL 2XCA

* GNSS:GPS/GLONASS/BeiDou/Galileo/QZSS

* Supply voltage range: 3.3V ~ 4.3V

* Control Via AT Commands

* Operation temperature: ‐40℃ ~ +85℃

* Dimensions: 41.0*43.6*2.8mm

* Interfaces
- USB2.0 with High speed up to 480Mbps
- USB3.1 with SS Gen2
- UART
- USIM and E‐SIM interface(1.8V /2.85V)
- Digital Audio through PCM
- I2C
- I2S for Audio
- SPI
- ADC
- GPIOs
- RGMII
- PCIe Gen3
- SDIO3.0
- WIFI
- PMI
- Antenna x 8

Other Features

- USB Driver for Microsoft Windows Win7/Win8/Win10

- USB Driver for Linux /Android

- RIL supporting for Android 5.0/6.0/7.0/8.0

- RNDIS /NDIS/PPP/MBIM to Win8

- Firmware update via USB

- TCP/IP/IPV4/IPV6/Multi‐PDP/FTPS /HTTPS/MQTTS/DNS

- SSL3.0/TLS1.0/TLS1.2

- DTMF (Sending and Receiving)

- VoNR/VoLTE/CSFB

- FOTA/OTA

- AGPS/SUPL2.0


* Approvals

- RoHS Compliant

- CCC*

- CTA*

- SRRC*

- REACH*

- CE*

- FCC*

- GCF

- RCM
