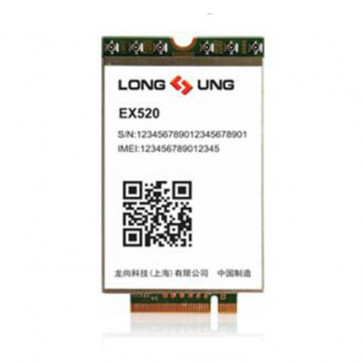

LongSung EX520 5G NR M.2 Module

* LongSung 5G NR Module


* Chipset: Qualcomm Snapdragon X55 Modem


* Form factor/package: M.2


* GNSS (GPS,GLONASS and BeiDou)


* Control via AT commands


* 5G Speed: DL 4 Gbps/UL 300Mbps

Sign up for price alert

Availability: In stock

$799.00

Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!

* Required Fields

Details
Details

LongSung EX520 5G module Specifications:


LongSung 5G NR Module

* Chipset: Qualcomm Snapdragon X55 Modem

* Form factor/package: M.2

* Support Sub-6G/mmWave/LTE-TDD/LTE-FDD/WCDMA networks

* Support 5G Band: N1/N2/N3/N5/N7/N8/N12/N20/N25/N28/N40/N41/N66/N71/N77/N78/N79

* Support LTE FDD Band: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71

* Support LTE TDD Band: B34/B38/B39/B40/B41/B42/B43/B48

* Support LTE DL 4 x 4 MIMO: B1/B2/B3/B4/B7/B25/B30/B38/B40/B41/B42/B43/B48/B66

* Support UMTS Band: B1/B2/B3/B4/B5/B8

* Specifications for data:

- Support Release 15
- Support SA / NSA
- 5G up to 4Gbps DL,300Mbps UL
- LTE-FDD up to 2.4 Gbps DL,200 Mbps UL
- LTE-TDD up to 2.4 Gbps DL,200 Mbps UL
- DC-HSPA+ up to 42.2Mbps DL,5.76Mbps UL
- Non transparent mode
- FOTA
- NDIS


* General features:

- Output power: Class 3 (0.25W) for LTE/UMTS
- Control via AT commands
- Supply voltage range: 3.2V- 4.4V
- Dimensions: 52.0×30.0×2.3mm
- GNSS (GPS,GLONASS and BeiDou)
- Sub-6G/mmWave/LTE-TDD/LTE-FDD/WCDMA
- Operation Temperature: -40°C to +85°C
- MSL:3


* Additional features:

- NoVR/VoLTE/CSFB
- AGPS/SUPL2.0
- Dedicated GNSS_L1 and GNSS_L2/L5
- DTMF


* Protocols: TCP/ UDP/ PPP/ FTP/ HTTP/ HTTPS/ SMTP/ SMTPS/ MMS/ FTPS/ NTP/ PING/ QMI/ SSL/ NITZ/ CMUX/ MQTT

* Interfaces:

- M.2, TYPE 3042-S3-B
- RF connector
- Power supply
- USB 3.0 with SS Gen2
- USB 2.0 high speed
- UICC/SIM/UIM card interface 3 V, 1.8 V
- UART(4-wire)
- PCM
- PCIE
- I2C
- GPIO
