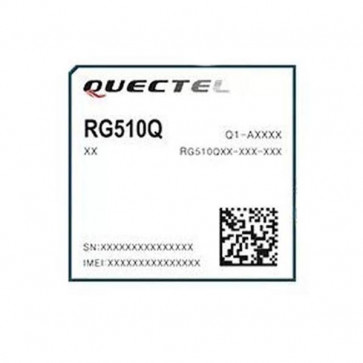

Quectel RG510Q 5G Sub-6GHz and mmWave Module

Quectel RG510Q is a series of 5G module supporting both 5G NR sub-6 GHz and mmWave spectrum bands and it's optimized specially for IoT and eMBB applications. Adopting the 3GPP Rel. 15 technology, it supports both 5G NSA and SA modes. The Quectel RG510Q variant models also support LTE Category 12 or above and has embedded GNSS capabilities.

Designed in LGA form factor, Quectel RG510Q module supports Qualcomm IZat location technology Gen8C Lite (GPS, GLONASS, BeiDou, Galileo and QZSS). The integrated GNSS receiver greatly simplifies product design and provides quicker, more accurate and more dependable positioning capability. It has been developed for the Asia-Pacific region as well as Europe, the Middle East, and North America.

A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB drivers for Windows 7, Windows 8/8.1, Windows 10, Linux, Android/eCall) extend the applicability of the module to a wide range of IoT and eMBB applications such as business router, home gateway, STB, industrial laptop, consumer laptop, industrial PDA, rugged tablet PC and video surveillance.

Quectel RG510Q 5G Module Specifications and features:

* Quectel 5G NR Module

* Chipset: Qualcomm Snapdragon X55 5G modem

* Form factor: LGA

* 5G NR and LTE-A Cat 12+ Dual mode module with LGA form factor, optimized for M2M and IoT applications

* Support both NSA and SA modes

* Support 5G frequency bands: N41/N77/78/79

* Support 4G frequency bands: B1/B3/B5/B7/B8/B20/B28/B34/B38/B39/B40/B41

* Worldwide 5G and LTE-A coverage

* Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment

* Feature refinements: DFOTA and VoLTE (optional)

More detail specifications would be updated soon....
