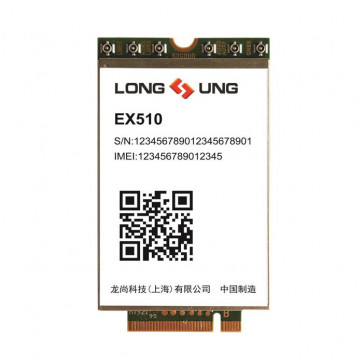

LongSung EX510 5G/LTE-FDD/LTE-TDD/HSPA+ Module

* LongSung 5G NR Module


* Chipset: Qualcomm Snapdragon X55 Modem


* Form factor/package: M.2


* GNSS (GPS,GLONASS and BeiDou)


* Control via AT commands


* 5G Speed: DL 4 Gbps/UL 300Mbps

Sign up for price alert Sign up to get notified when this product is back in stock

Availability: Out of stock

$999.00

Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!

Details
Details

LongSung EX510 is a new generation of Longsung 5G wireless module, rich of Internet protocols, and industry-standard interfaces and abundant functionalities. It is Multi-Band 5G NR/LTE-FDD/LTE-TDD/HSPA+ module solution in a M.2 type which supports 5G NR up to 4 Gbps data transfer.

LongSung EX510 5G module has strong extension capability with rich interfaces including PCIe, UART, USB3.0, GPIO etc. The 5G module provides much flexibility and ease of integration for customer's application.

LongSung EX510 module is designed for applications that need high throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this 5G module is ideally suited for many applications.


LongSung EX510 5G module Specifications:


* LongSung 5G NR Module

* Chipset: Qualcomm Snapdragon X55 Modem

* Form factor/package: M.2

* Support Sub-6G/LTE-TDD/LTE-FDD/WCDMA networks

* Support 5G Band: N1/N2/N3/N5/N7/N8/N12/N20/N25/N28/N40/N41/N66/N71/N77/N78/N79

* Support LTE FDD Band: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71

* Support LTE TDD Band: B34/B38/B39/B40/B41/B42/B43/B48

* Support LTE DL 4 x 4 MIMO: B1/B2/B3/B4/B7/B25/B30/B38/B40/B41/B42/B43/B48/B66

* Support UMTS Band: B1/B2/B3/B4/B5/B8

* Specifications for data:

- Support Release 15
- Support SA / NSA
- 5G up to 4Gbps DL,300Mbps UL
- LTE-FDD up to 2.4 Gbps DL,200 Mbps UL
- LTE-TDD up to 2.4 Gbps DL,200 Mbps UL
- DC-HSPA+ up to 42.2Mbps DL,5.76Mbps UL
- Non transparent mode
- FOTA
- NDIS


* General features:

- Output power: Class 3 (0.25W) for LTE/UMTS
- Control via AT commands
- Supply voltage range: 3.2V- 4.4V
- Dimensions: 52.0×30.0×2.3mm
- GNSS (GPS,GLONASS and BeiDou)
- Sub-6G/LTE-TDD/LTE-FDD/WCDMA
- Operation Temperature: -40°C to +85°C
- MSL:3


* Additional features:

- NoVR/VoLTE/CSFB
- AGPS/SUPL2.0
- Dedicated GNSS_L1 and GNSS_L2/L5
- DTMF


* Protocols: TCP/ UDP/ PPP/ FTP/ HTTP/ HTTPS/ SMTP/ SMTPS/ MMS/ FTPS/ NTP/ PING/ QMI/ SSL/ NITZ/ CMUX/ MQTT

* Interfaces:

- M.2, TYPE 3042-S3-B
- RF connector
- Power supply
- USB 3.0 with SS Gen2
- USB 2.0 high speed
- UICC/SIM/UIM card interface 3 V, 1.8 V
- UART(4-wire)
- PCM
- PCIE
- I2C
- GPIO
