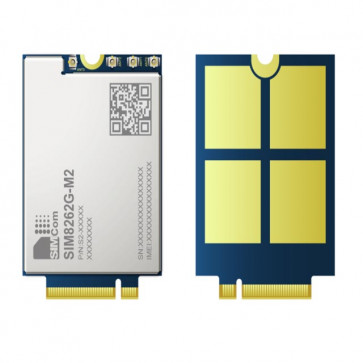

SIMCOM SIM8262G-M2 5G NR Module

SIMCOM SIM8262G-M2 is a multiband 5G NR/LTE-FDD/LTE TDD/HSPA+ module that supports 5G NSA/SA dual mode. It is equipped with Qualcomm Snapdragon X62, which is Qualcomm's new-generation 5G modem-to-antenna solution that supports download speeds up to thousands of megabits for mobile broadband applications. SIMCOM SIM8262G-M2 has powerful scalability and various interfaces, including PCIe,USB3.1,GPIO, etc. It adopts M.2 standard interfaces. The size is 42.0*30.0* 2.3mm. Its AT command is compatible with SIM8202G/SIM8200X-M2 modules, minimizing the investment cost and shortening the time to market for customers.

As the first 5G communication module that supports R16, SIMCOM SIM8262G-M2 can be widely used in virtual reality, augmented reality, CPE and other terminals to create application scenarios such as Internet of Vehicles, industrial Internet of Things, WITMED, 4K /8K HD videos, etc., greatly conducive to AIoT.

SIMCOM SIM8262G-M2 5G module Specifications:

* Product type: 5G Wireless Module

* Chipset: Qualcomm Snapdragon X62

* Compliant with 3GPP Release 16 (R16) standard

* Form factor: M.2

* Dimensions: 42.0*30.0* 2.3mm

* Frequency Bands:
- Sub-6G(SA): n1,n2,n3,n5,n7,n8,n12,n20,n28,n38,n40,n41,n48,n66,n71,n77,n78,n79
- Sub-6G(NSA): n38, n41, n77, n78, n79
- LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71
- LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48
- LAA: B46
- WCDMA: B1/B2/B3/B4/B5/B8
- GNSS

* Temperature: -30℃ ~ +70℃

* Protocol: TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/MQTTS/DNS/SSL3.0

* TLS

* File System

* FOTA

* Android RIL: Android 6/7/8/9

* USB Driver:Microsoft Windows Win7/Win8/Win10/Linux/Android

* MBIM: Win8/Win10

* NDIS: Linux/Win7/Win8/Win10

* Firmware Upgrade: USB

* Supply Voltage(V): 3.135 ~ 4.4

* Data Transfer
- Sub-6G: 2.8Gbps(DL)/600Mbps(UL)
- LTE: 1.6Gbps(DL)/200Mbps(UL)
- HSPA+: 42Mbps (DL)/5.76Mbps(UL)

* Interfaces
- SIM Card: 1.8V/2.95V
- USB: ●
- PCIe: ●
- PCM: ●
- I2C: ●

* Certifications
- Regulatory: CCC/SRRC*/CTA*/RoHS*/REACH*/CE*/JATE*/TELEC*
