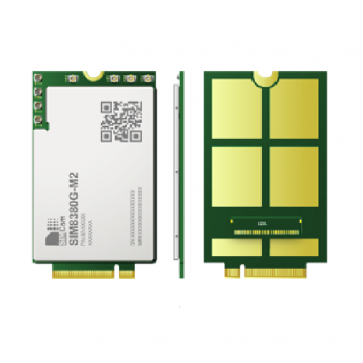

SIMCOM SIM8380G-M2 5G Sub-6G & mmWave M.2 Module

SIMCOM SIM8380G-M2 is a multi-Band 5G NR/LTE-FDD/LTE-TDD/HSPA+ module which supports R16 5G NSA/SA.

It has strong extension capability with abundant interfaces including PCIe, USB3.1, GPIO etc. The SIMCOM 5G module provides much flexibility and ease of integration for customer's applications.

SIMCOM SIM8380G-M2 adopts M2 form factor. AT commands of SIM8380G-M2 are compatible with SIM8300 series modules. This also minimizes the investments of customers and enables a short time-to-market.

It is designed for applications that need high throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for many applications.

SIMCOM SIM8380G-M2 5G Module Specifications:

* Product type: 5G Cellular Module

* Form Factor: M.2

* Dimensions(mm): 52.0*30.0*2.3

* Frequency Bands:
- 5G Sub-6G: n1/n2/n3/n5/n7/n8/n12/n13/n14/n20/n25/n26/n28/n38/n40/n41/n48/n66/n71/n77/n78/n79
- 5G mmWave：n257/n258/n260/n261
- LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71/B75/B76
- LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B46/B48
- WCDMA: B1/B2/B3/B4/B5/B8

* GNSS: GPS/Gallileo/QZSS/GLONASS/Beidou

* Temperature: -30℃ ~ +70℃

* Supply Voltage(V): 3.135 ~ 4.4

* Data Transfer
- 5G mmWave: 7Gbps(DL)/3Gbps(UL)
- 5G Sub-6G: 4Gbps(DL)/1Gbps(UL)
- LTE: 2Gbps(DL)/200Mbps(UL)
- HSPA+: 42Mbps (DL)/5.76Mbps(UL)

* Protocol: TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/MQTTS/DNS/SSL3.0

* TLS: support

* File System: support

* FOTA: support

* Android RIL: Android 6/7/8/9

* USB Driver: Microsoft Windows Win7/Win8/Win10/Linux/Android

* MBIM: Win8/Win10

* NDIS: Linux/Win7/Win8/Win10

* Firmware Upgrade: USB

* Interfaces
- SIM Card: 1.8V/2.95V
- USB: ●
- PCM: ●
- I2C: ●
- Diversity Receiver: ●

* Certifications
- Regulatory: CE(RED)*/FCC*/RoHS*/REACH*
