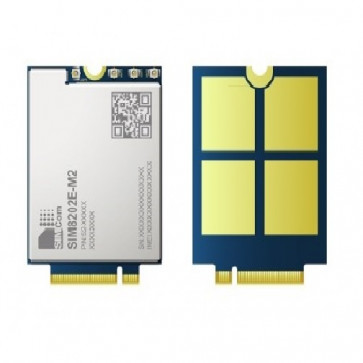

SIMCOM SIM8202E-M2 5G NR/LTE-FDD/LTE-TDD/HSPA+ Module

SIMCOM SIM8202E-M2 is the Multi-Band 5G NR/LTE-FDD/LTE-TDD/HSPA+ module which supports R15 5G NSA/SA up to 2.4Gbps data transfer.

It has strong extension capability with abundant interfaces including PCIe, USB3.1, GPIO etc. The module provides much flexibility and ease of integration for customer's applications.

SIMCOM SIM8202E-M2 adopts M.2 form factor, type 3042-S3-B. At commands of SIM8202E-M2 are compatible with SIM7912G/SIM8200X-M2 series modules. This also minimizes the investments of customers and enables a short time-to-market.

It is designed for applications that need high throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for many applications.

SIMCOM SIM8202E-M2 5G Module Specifications:

* Product type: 5G Cellular Module

* Form Factor: M.2

* Dimensions(mm): 42.0*30.0*2.3

* Frequency Bands:
- Sub-6G: n1,n2,n3,n5,n7,n8,n12,n20,n28,n38,n40,n41,n48, n71,n77,n78,n79
- LTE-FDD: B1/B3/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B26/B28/B29/B71
- LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48
- WCDMA: B1/B3/B5/B8
- GNSS: GPS L1/Gallileo/QZSS/GPS L5/GLONASS/Beidou/Compass

* Temperature: -30℃ ~ +70℃

* Supply Voltage(V): 3.135 ~ 4.4

* Data Transfer
- Sub-6G: 2.4Gbps(DL)/500Mbps(UL)
- LTE: 1Gbps(DL)/200Mbps(UL)
- HSPA+: 42Mbps (DL)/5.76Mbps(UL)

* Protocol: TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/MQTTS/DNS/SSL3.0

* TLS: support

* File System: support

* FOTA: support

* Android RIL: Android 6/7/8/9

* USB Driver: Microsoft Windows Win7/Win8/Win10/Linux/Android

* MBIM: Win8/Win10

* NDIS: Linux/Win7/Win8/Win10

* Firmware Upgrade: USB

* Interfaces
- SIM Card: 1.8V/2.95V
- USB: ●
- PCIe: ●
- PCM: ●
- I2C: ●
- UART: ●

* Certifications
- Regulatory: CCC/SRRC*/CTA*/RoHS*/REACH*/CE*/FCC*
