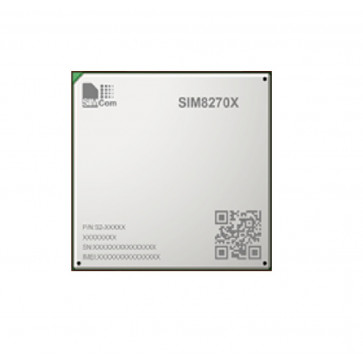

SIMCOM SIM8270 5G NR LGA Module

SIMCOM SIM8270X is a multi-Band 5G NR/LTE-FDD/LTE-TDD/HSPA+ module which supports R17 5G NSA/SA. It has three variant models: SIM8270NA, SIM8270E and SIM8270SA.

With a rich protocols, it is integrated with interfaces such as PCIe, USB3.1, GPIO etc. This module provides applications with great flexibility and ability of integration.

SIMCOM SIM8270X adopts LGA form factor. AT commands of SIM8270SA are compatible with SIM8260 series modules. This also minimizes costs for customer and shortens time to market.

It is designed for applications that need huge data transmission in various wireless situations. Due to its high efficiency, security and flexibility, this module suits various applications.

SIMCOM SIM8270 5G Module Specifications：

* Product type: 5G Cellular Module

* Form Factor: LGA Package

* Chipset: Qualcomm Snapdragon SDX72

* Dimensions(mm): 46.0*53.0*2.8

* Frequency Bands:

SIMCOM SIM8270NA supports:
- 5G SA: n2/n5/n7/n12/n13/n14/n25/n26/n29/n30/n38/n41/n48/n66/n70/n71/n77/n78
- 5G NSA: n2/n5/n7/n12/n13/n14/n25/n26/n29/n30/n38/n41/n48/n66/n70/n71/n77/n78
- LTE-FDD: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B29/B30
- LTE-TDD: B38/B41/B42/B43/B46/B48/B66/B71
- WCDMA: N/A

SIMCOM SIM8270E supports:
- 5G SA: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n75/n76/n77/n78
- 5G NSA: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n75/n76/n77/n78
- LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32
- LTE-TDD: B38/B40/B41/B42/B43/B71
- WCDMA: B1/B5/B8

SIMCOM SIM8270SA supports:
- 5G SA: n2/n4/n5/n7/n8/n28/n38/n40/n66/n71/n78
- 5G NSA: n2/n4/n5/n7/n8/n28/n38/n40/n66/n71/n78
- LTE-FDD: B2/B4/B5/B7/B8/B26/B28
- LTE-TDD: B38/B40/B42/B43/B66/B71
- WCDMA: B1/B2/B4/B5

* GNSS: GPS/Gallileo/QZSS/GLONASS/Beidou

* Temperature: -30℃ ~ +70℃

* Supply Voltage(V): 3.135 ~ 4.4

* Data Transfer
- Sub-6G SA: 2.4Gbps(DL)/1Gbps(UL)
- Sub-6G NSA: 3.4Gbps(DL)/600Mbps(UL)
- LTE: 1.6Gbps(DL)/200Mbps(UL)
- HSPA+: 42Mbps (DL)/5.76Mbps(UL)

* Protocol: TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/MQTTS/DNS/SSL3.0

* TLS: support

* File System: support

* FOTA: support

* Android RIL: Android 6/7/8/9

* USB Driver: Microsoft Windows Win7/Win8/Win10/Linux/Android

* MBIM: Win8/Win10

* NDIS: Linux/Win7/Win8/Win10

* Firmware Upgrade: USB

* Interfaces
- SIM Card: 1.8V/2.95V
- USB: ●
- PCM: ●
- I2C: ●
- Diversity Receiver: ●

* Certifications
- Regulatory: CE(RED)*/FCC*/RoHS*/REACH*
