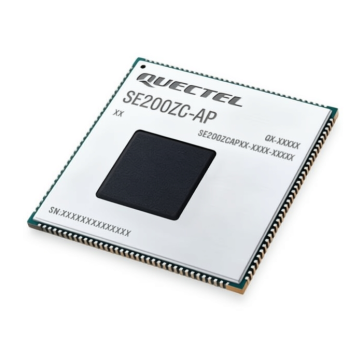

Quectel SE200ZC-AP Smart Module

Quectel SE200ZC-AP Smart Module Specifications:

* Product type: AI smart module

* Physical Dimensions: 40.0 × 40.0 × 2.9 mm

* Package Type: LCC + LGA

* Processor & Computing Power:
- Platform: Rockchip RV1126B / RV1126BJ
- CPU: Quad-core ARM Cortex-A53, up to 1.6 GHz (integrated with Neon acceleration engine and FPU)
- NPU: 3 TOPS (Supports INT4/INT8/INT16/FP16 mixed-precision computing)

* Memory & Storage
- RAM: 1 GB LPDDR4x
- Storage: 64 GB eMMC

* Multimedia & Image Processing
- Video Encoding: 4K @ 45fps (H.265 / H.264)
- Video Decoding: 4K @ 30fps (H.265 / H.264)
- Parallel Encoding: Dual parallel encoding (HEVC/JPEG, H.264/JPEG)
- ISP Support: 8MP AI-ISP and 12MP HDR ISP (Hardware-independent processing)
- Camera Interfaces:
2 × 4-lane MIPI CSI (can be flexibly split into multiple 2-lane channels)
1 × General-purpose DVP interface
- Camera Capacity: Supports up to 5 cameras (Max 12MP @ 30fps per channel)

* Power Management
- Sleep Current: 0.85 mA (under 1GB LPDDR4x + 64GB eMMC configuration)
- Features: AOV3.0 low-power video recording, fast boot, low-power pre-recording.

* Interfaces
- MIPI_DPHY / DVP / LCDC
- MIPI CSI
- SAI, PDM, DSM
- ADC
- I2C
- GMAC
- USB 3.0 / USB 2.0
- SPI
- CAN FD
- SDIO
- UART

* Software Compatibility
- Operating Systems: Linux (Kernel 6.1), Debian 12

* Expandability (via external Quectel modules)
- 4G Cellular
- Wi-Fi 6
- Audio
- GNSS

* Target Applications: Smart security, industrial vision, smart vehicles, service robots, medical imaging, smart retail.
