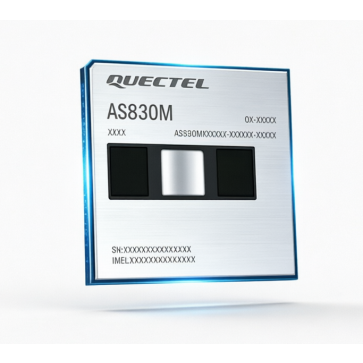

Quectel AS830M 5G+ AI Smart Module

Quectel AS830M 5G + AI module Specifications:

* Form factor: SiP (BGA)

* Dimensions (mm): 63.0 × 63.0 × 4

* Frequency bands(MHz) -CN (China)
- 5G NR SA: n1/3/5/8/28A/41/77/78/79;
- 5G NR NSA: n41/77/78/79;
- LTE FDD: B1/3/5/8;
- LTE TDD: B34/38/39/40/41;
- WCDMA: B1/5/8

* CPU
- 4 nm, KryoTM 485 processor
- 8 × MKL/MTH/ KL,
- 1 × Kryo Prime @ 3.2 GHz + 4 × Kryo Gold @ 2.8 GHz + 3 × Kryo Silver @ 2.0 GHz
- QCM8538 computing power ≈ 200 KDMIPS

* GPU: AdrenoTM 740 GPU

* Memory:
- 8 GB × 2 LPDDR5X + 128 GB UFS 3.1
- 12GB × 2 LPDDR5X + 256 GB UFS 3.1

* Operating system: Android/Linux

* Supply voltage range: 3.55 V ~ 4.4 V, typ. 4.0 V

* Weight (approx.) (g): 35.2

* Operating temperature: -35 °C ~ +75 °C

* Data transmission (Max. )
- 5G NSA: 4.46 Gbps (DL)/660 Mbps (UL)
- SA: 4.3 Gbps (DL)/570 Mbps (UL)
- LTE (Mbps) FDD: 450 (DL)/75 (UL) TDD: 383 (DL)/45 (UL)
- UMTS: DC-HSDPA: 42 Mbps(DL) HSUPA: 5.76 Mbps (UL)
- WCDMA: 384 Kbps (DL)/(UL
- GSM (Kbps): 296 (DL)/ 236.8 (UL)

Interfaces
--------------------
* LCM： One 4-lane DisplayPort (DP compatible with USB 3.1 Gen 2)
The DisplayPort mode complies with the VESA DisplayPort V1.4
specification and supports 2 × 4K60 10 bits (MST) or
1 × 8K30 (DSC)
2 × 4-lane DSI; DSI supports up to 5120 × 2880 (60 Hz)

* Camera: 8 × 4-lane CSI

* Touch panel: One I2C interface used for TP

* Audio: I2S/ TDM/ PCM

* Video
Encoding: 4K @ 120 fps; 8K @ 30 fps
Decoding: 4K @ 240 fps; 8K @ 60 fps
Native encoding supports H.265 Main 10, H.265 Main, and H.264
high formats
Native decoding supports H.265 Main 10, H.265 Main, H.264 High,
and VP9 profile 2

* USB
1 × USB 2.0 or USB 3.1 Gen 2, which can be used for the AT
command communication, data transfer, software
debugging, and firmware upgrade
OTG (USB 3.1 can be multiplexed as DP)

* I2C
15 × I2C interfaces
6 × general-purpose I2C interfaces for peripheral devices such
as TP, NFC, and APPS
6 × dedicated I2C interfaces for cameras
2 × dedicated I2C interfaces for display screens
1 × dedicated I2C interface for the sensor

* (U)SIM: 2 × (U)SIM interfaces, 1.8/ 3 V (U)SIM cards; (U) SIM card hot plug detection

* UART: Debug UART × 1, General-purpose UARTs × 2

* SD card × 1 (3.0, 4-bit SDIO)

* PWRKEY: 1.2V

* SPI
7 × SPI interfaces
Only master mode
1.8 V voltage domain
Clock frequency: up to 50 MHz

* ADC: 3 × general-purpose ADC interfaces

* I2S: 6 × I2S interfaces, one of which supports 4 data channels
All I2S interfaces can be configured as PCM and TDM formats

* GPIO: × 58

* PCIe: 1 × PCIe interface

* Antenna: Main, Rx-diversity, GNSS, Wi-Fi & Bluetooth, MIMO, eCall*

Enhanced features
--------------------
* BT: Bluetooth2.1+EDR/3.0/4.1LE/4.2BLE/5.4LE

* Wi-Fi: 802.11a/ b/ g/ n/ ac/ ax/ be, 2 × 2 MIMO

* GNSS: GPS/GLONASS/BDS/Galileo/QZSS/NavlC; L1+L5

* Dual LCDs: support independent display for 2 LCDs

* Firmware update: Firmware upgrade via USB or OTA

* Certifications: CCC//NAL/SRRC*/AECQ104*

* Recommended applications: integrated intelligent cockpit
