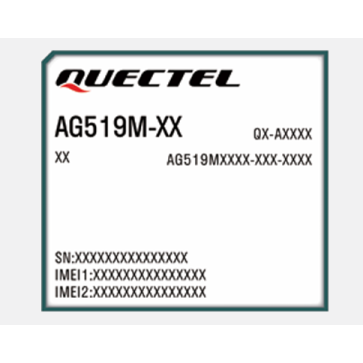

Quectel AG519M 5G R18 Automotive V2X Module

Quectel AG519M is an automotive-grade cellular module designed for vehicle connectivity, part of Quectel's advanced series that offers 5G (R18 Ready), LTE, and fallback networks, supporting critical features like European eCall/China AECS, enhanced GNSS (L1/L5), and robust antenna performance for telematics and connected car applications, ensuring high reliability in harsh automotive environments.

Quectel AG519M provides robust, high-performance wireless communication for automotive applications, enabling advanced telematics, infotainment, V2X (Vehicle-to-Everything) communication, and reliable emergency services.

Quectel AG519M 5G Module Specifications:

* Form Factor: LGA

* Dimensions (mm): 38.0 × 42.0 × 3.05

* 4G: LTE Cat 6

* Frequency Bands(MHz)

- Quectel AG519M-CN (China/India)
LTE-FDD: B1/3/5/8; LTE-TDD: B34/38/39/40/41;
WCDMA: B1/8; GSM: 900/1800MHz

- Quectel AG519M-EU (EMEA/ Korea/Australia/Southeast Asia/ Brazil)
LTE-FDD: B1/3/5/7/8/20/28; LTE-TDD: B38/41;
WCDMA: B1/5/8; GSM: 900/1800MHz

- Quectel AG519M-NA (North America/Mexico/Latin America)
LTE-FDD: B2/4/5/7/12/13/17/28/291/301/66/71;
WCDMA: B2/4/5; GSM: 850/1900MHz

- Quectel AG519M-JP (Japan)
LTE-FDD: B1/3/5/7/8/9/11/19/21/28; LTE-TDD: B41;
WCDMA:B1/3/5/8/9/19

* Weight (approx.): 10g

* Operating Temperature: -40 °C ~ +85 °C (eCall: +95 °C)

* Data Transmission
LTE FDD Data Rate (Mbps) Max. 300 (DL)/ Max. 50 (UL)
LTE TDD Data Rate (Mbps) Max. 240 (DL)/ Max. 30 (UL)
DC-HSDPA/HSUPA Data Rate
(Mbps) Max. 42 (DL)/ Max. 5.76 (UL)
WCDMA Data Rate (Kbps) Max. 384 (DL)/ Max. 384 (UL)
EDGE Data Rate (Kbps) Max. 236.8 (DL)/ Max. 236.8 (UL)
GPRS Data Rate (Kbps) Max. 85.6 (DL)/ Max. 85.6 (UL)

* SMS: Point-to-point MO and MT; SMS Cell Broadcast; Text and PDU Mode

* Protocols: TCP/UDP/PPP/PING/FTP(S)/HTTP(S)/SMTP/SSL/TLS/MMS/NTP/DTMF*/FILE

* Interfaces
(U)SIM × 2
UART × 3
USB 2.0/3.1 × 1
PCIe/USB 3.0 (PCIe by default) × 1
IIC × 2
RGMII × 1
SDIO × 1
SPI × 3
ADC × 3
GPIO × 15
RESET_N × 1
Antenna Main × 1; Diversity × 1; Wi-Fi/BT × 1; GNSS × 1

* Enhanced Features
QuecOpen® (Open Linux) ●
eCall ●
Dual/AB System* ●
eSIM (eUICC) ●
(U)SIM Detection ●
Temperature Management ●
GNSS: GPS/ GLONASS/ BeiDou/ Galileo
ESD/EMI Protection: Realized through Internal Specific Circuits and Components (Electrostatic Discharge Conforms to ±12KV air discharge and ±8KV of contact discharge)
Gigabit Ethernet: Optional
RTK/ADR: Optional
Multi-Frequency GNSS (L1/L5): Optional
UART Interface for BT Function: Optional

* Advanced Security Feature
TrustZone/ TPM* ●
Secure Boot ●
SE-Linux ●

* Software Features
RIL Driver: Android 4.x/ 5.x/ 6.x/ 7.x/ 8.x/ 9.x
GNSS Driver: Android 4.x/ 5.x/ 6.x/ 7.x/ 8.x/ 9.x
RNDIS: Windows 7/8/8.1/10, Linux 2.6~5.0
ECM: Linux 2.6~5.0
Gobinet: Linux 2.6~5.0, Android 4.x/ 5.x/ 6.x/ 7.x/ 8.x/ 9.x
QMI_WWAN Driver: Linux 3.4~5.0, Android 4.x/5.x/6.x/7.x/8.x/9.x
USB Serial Driver: Windows 7/8/8.1/10, Linux 2.6~5.0, Android 4.x/5.x/6.x/7.x/8.x/9.x

* Electrical Features
Supply Voltage Range: VBAT_BB/VBAT_RF: 3.8 V~4.3 V (typ. 4.0 V )
Power Consumption:
TBD @Power off
TBD @Sleep, Typ.
TBD @Idle

Certifications: CCC/SRRC/NAL/FCC*/IC*/PTCRB*/GCF*/AT&T*/CE*/KC*/JATE*/TELEC*/RCM*

Recommended Applications: Automotive
