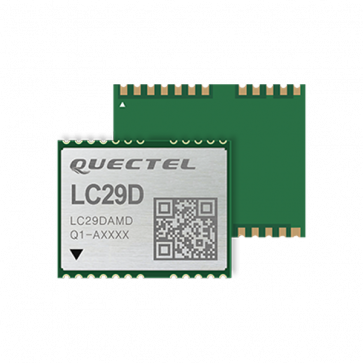

Quectel LC29D GNSS Module

Quectel LC29D is a concurrent multi-constellation GNSS receiver on dual GNSS bands and has integrated a 6-axis sensor, fusion with RTK and dead-reckoning algorithm, this module can get Sub-meter level positioning accuracy under open sky environment.

Compared with the GNSS modules working on L1 band only, LC29D can work on L1 and L5 bands for GPS, Galileo and QZSS satellites, L1 band for GLONASS and BeiDou satellites as well as L5 band for IRNSS satellite，can greatly increases the number of satellites involved in tracking and positioning, thereby significantly reducing the multipath effect caused by tall buildings in urban environments, improving positioning accuracy.

Its on-board LNAs and SAW filters serve to ensure better positioning in weak signal areas and other harsh environments.

Coupled with the advanced low-power management solution, enables low-power GNSS sensing and positioning determination and makes the module an ideal solution for power-sensitive and battery-powered systems.

Due to its low power consumption and high performance, LC29D has become a popular selection for real-time tracking systems, sharing economy applications and so on. Its super performance makes LC29D ideal for vehicle, people and asset tracking as well as sharing economy applications.

Key Benefits

* Ultra-compact size: 12.2mm × 16.0mm ×2.4mm
* Multi-GNSS engine for GPS, GLONASS, IRNSS, BeiDou, Galileo and QZSS
* Support dual GNSS bands (L1, L5)
* Built-in LNA for better sensitivity
* Support SPI, UART and I2C interfaces
* Support SDK command developed by Quectel
* Support AGNSS
* Support RTK and DR function
