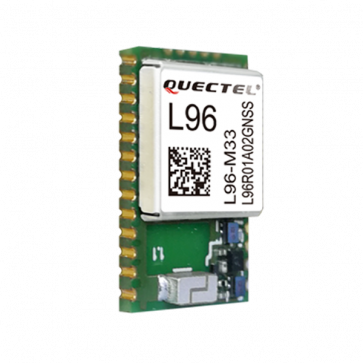

Quectel L96 GNSS Module

* Quectel GNSS Module


* Ultra low tracking power consumption


* Multi-GNSS engine for GPS, GLONASS, Galileo and QZSS


* Embedded, omnidirectional and wideband antenna


* Support DGPS, SBAS (WAAS/ EGNOS/ MSAS/ GAGAN)


* Great anti-jamming performance due to multi-tone active interference canceller


* Built-in LNA for better sensitivity


* Dual SAW filters for better noise cancellation

Sign up for price alert

Availability: In stock

$39.00
  • Buy 5 for $35.00 each and save 11%
  • Buy 10 for $32.00 each and save 18%
  • Buy 15 for $30.00 each and save 24%

Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!

Details
Details

Quectel L96 is a concurrent multi-GNSS receiver module with embedded chip antenna. With 33 tracking channels, 99 acquisition channels and 210 PRN channels, Quectel L96 supports concurrent reception of up to three GNSS systems (GPS+GLONASS+Galileo). The built-in LNA provides the module with better performance under weak signal areas. The embedded chip antenna reduces the total size of customers’ applications. To meet varied application demands, Quectel L96 also provides an external antenna interface.

Compared with using GPS only, enabling multiple GNSS systems generally increases the number of visible satellites, reduces the time to first fix and increases positioning accuracy, especially when driving in rough urban environments.

Combining advanced AGPS called EASY™ (Embedded Assist System) and proven AlwaysLocate™ technology, L96 fully meets the industrial standard and provides greatly reduced TTFF and ultra-low power consumption. EASY™ technology allows L96 to calculate and predict orbits automatically using the ephemeris data (up to 3 days) stored in internal flash memory, so the module can fix position quickly even at low signal levels and provide low power consumption. With AlwaysLocate™ technology, Quectel L96 GNSS Module can adaptively adjust the ON/OFF time to achieve balance between positioning accuracy and power consumption according to the environmental and motional conditions.

Its super performance makes Quectel L96 module ideal for automotive, industrial and consumer applications. Extremely low power consumption makes it easier to be applied to power sensitive devices, especially portable applications.


Key Benefits:

* Ultra-compact size: 14.0mm × 9.6mm × 2.0mm

* Multi-GNSS engine for GPS, GLONASS, BeiDou, Galileo (RLM supported) and QZSS

* Embedded, omnidirectional and wideband antenna

* Built-in LNA for better sensitivity

* Dual SAW filters for better noise cancellation

* Support EASY™ and EPO advanced AGPS technologies without the need of any external memory

* AlwaysLocate™, an intelligent algorithm for power saving

* Ultra low tracking power consumption: 20mA

* LOCUS, embedded log saving function without the need of host or any external flash

* Support DGPS/SBAS (WAAS/EGNOS/MSAS/GAGAN)

* Great anti-jamming performance due to multi-tone active interference canceller

* Balloon mode, for high altitude up to 80km

* PPS VS. NMEA can be used in time service

* GLP/geo-fence/jamming detection/odometer functions

* Support SDK command for customized settings


Quectel GNSS L96 Module Specifications:


* GNSS Features

- GPS/Galileo L1 C/A: 1575.42MHz
- GLONASS L1 C/A: 1602.5625MHz
- BD2 B1 C/A: 1561.098MHz
> Channel: 33(Tracking)/ 99 (Acquisition)
> 210 PRN Channels
> SBAS: WAAS, EGNOS, MSAS, GAGAN

- Horizontal Position Accuracy:
> Autonomous: <2.5m CEP


- Velocity Accuracy:
> Without Aid: <0.1m/s

- Acceleration Accuracy:
> Without Aid: <0.1m/s2

- Timing Accuracy: ≤ 10ns

- Reacquisition Time: <1s

- TTFF @-130dBm with EASY:
> Cold Start: <15s
> Warm Start: <5s
> Hot Start: <1s

- TTFF @-130dBm without EASY:
> Cold Start: <35s
> Warm Start: <30s
> Hot Start: <1s

- Sensitivity:
> Acquisition: -148dBm
> Tracking: -165dBm
> Reacquisition: -160dBm

- Dynamic Performance:
> Maximum Altitude: Max. 18000m
> Maximum Velocity: Max. 515m/s
> Maximum Acceleration: 4G


* Interfaces

- Serial Interfaces:
> I2C Interface: Max. bit rate up to 400kbps

> UART: Adjustable 4800bps~115200bps
> Default: 9600bps
> Update Rate: 1Hz (Default), up to 10Hz
> I/O Voltage: 2.7V~2.9V


- External Antenna Interface:
> Antenna Type: Passive or Active
> Antenna Power Supply: External


- Protocols:
> NMEA 0183
> PMTK


* General Features

- Temperature Range: -40°C ~ +85°C

- Dimensions: 14.0mm × 9.6mm × 2.5mm

- Weight: Approx. 0.6g

- Power Supply: 2.8V~4.3V, typical 3.3V

- Power Acquisition:
> 22mA @3.3V, -130dBm (GPS)
> 25mA @3.3V, -130dBm (GPS+GLONASS)

- Power Tracking:
> 20mA @3.3V, -130dBm (GPS)
> 20mA @3.3V, -130dBm (GPS+GLONASS)

- Power Saving:

> 2.8mA @AlwaysLocate
> 7uA @Backup Mode
> 500uA @Standby Mode
> 4.8mA @Periodic Mode Note
