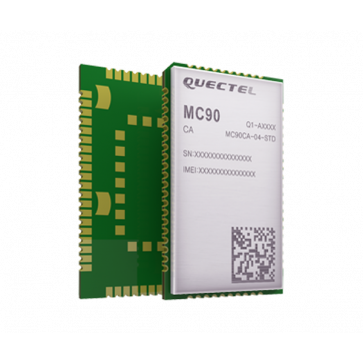

Quectel MC90 GSM/GPRS/GNSS Module

* Quectel 2G GSM/GPRS/GNSS Module

* Quad-band: 850/900/1800/1900MHz

* Max. 85.6 kbps (uplink & downlink)

* Multi-GNSS system: GPS, GLONASS, Galileo and QZSS

* Support 2.4G Wi-Fi (IEEE 802.11b/g/n) (scan only)

* Support hybrid positioning (GNSS, Cell ID and Wi-Fi aided positioning)

* Support 1PPS function

Sign up for price alert

Availability: In stock

Regular Price: $59.00

Special Price $55.00

Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!


Quectel MC90 is a quad-band full-featured GSM/GPRS/GNSS/Wi-Fi module using LCC castellation package. It supports hybrid positioning technology, which includes GNSS, Cell ID and Wi-Fi aided positioning. The module also features low power consumption and supports dual SIM single standby function.

Thanks to the hybrid positioning technology, Quectel MC90 supports position tracking under both indoor and outdoor environments. GNSS+Cell ID+Wi-Fi hybrid positioning ensures that the module can track position even in weak or no signal areas; and Wi-Fi positioning is used to ensure position tracking indoors. Quectel MC90 also supports EPOTM technology which provides predicted Extended Prediction Orbit to speed up TTFF without the need of any extra server. Based on EPO data, QuecFastFix Online function further reduces TTFF in cold start. EASYTM technology enables a very fast first fix when there is no enough satellite information. GLP (GNSS Low Power) power saving mode ensures great positioning accuracy while with ultra-low power consumption. The built-in LNA provides the module with improved RF sensitivity and exceptional acquisition/tracking performances even in weak signal areas.

The compact form factor, great positioning performance, low power consumption and dual (U)SIM interfaces make MC90 a best choice for a wide range of M2M applications, such as bicycle-sharing system, student ID card, vehicle tracker, wearable device (smartwatch), pet tracker, asset tracker, driving recorder, etc.

Key Benefits

* Support 2.4G Wi-Fi (IEEE 802.11b/g/n) (scan only)

* Low power consumption: 1.2mA @DRX=5

* Support voice, data, SMS, OpenCPU and QuecFOTA functions

* Embedded abundant Internet service protocols

* Built-in LNA for higher sensitivity: -149dBm @Acquisition/ -167dBm @Tracking

* Multi-GNSS system: GPS, GLONASS, Galileo and QZSS

* Support hybrid positioning (GNSS, Cell ID and Wi-Fi aided positioning)

* Support advanced technologies: EASYTM/LOCUSTM/AlwaysLocateTM/GLP/SDK/AIC/EPOTM/QuecFastFix Online

* Great anti-jamming performance due to multi-tone active interface canceller

* Support 1PPS function

Quectel MC90 Specifications:

> LCC Package


> Quad-band 850/900/1800/1900MHz

> Max 85.6kbps (Downlink), Max 85.6kbps (Uplink)

> Coding Schemes: CS 1, 2, 3. 4


> Non-transparent Mode

> Supply Voltage Range: 3.3~4.6V 4.0V typ.

> Operation Temperature: -40 °C to +85 °C

> Control via AT commands: GSM 07.07, 07.05 and other Enhanced AT Commands

> Protocols: TCP/UDP/FTP/HTTP/PPP/SSL/MQTT Protocols

> SMS:
- Point-to-point MO and MT
- SMS Cell Broadcast
- Text and PDU Mode

> Speech Codec Modes
- Half Rate (HR)
- Full Rate (FR)
- Enhanced Full Rate (EFR)
- Adaptive Multi-Rate (AMR)

> Echo Arithmetic
- Echo Cancellation
- Echo Suppression
- Noise Reduction

> Interfaces
- SIM/USIM card interface: x 2 (3.0V/1.8V)
- UART: × 4 (Main Port x 1, Debug Port x 1, Auxiliary Port x 1, GNSS Port x 1)
- Analog Audio Channel: 2 x output channels and 1 input channel
- Wi-Fi: 2.4G Wi-Fi (IEEE 802.11b/g/n) (Scan Only)
- ADC × 1
- GPIO × 1
- PCM × 1 (LGA Pad)
- RTC × 1
- Antenna Pad: x 3 (GSM Antenna Pad x 1, GNSS Antenna Pad x 1, Wi-Fi Antenna Pad x 1)

* GNSS Features
> GPS L1 C/A: 1575.42MHz
> GLONASS L1 C/A: 1601.71MHz
> 33 (Tracking)/99 (Acquisition)/210 (PRN)
> Horizontal Position Accuracy Autonomous: <2.5m CEP
> Velocity Accuracy(Without Aid): <0.1 m/s
> Acceleration Accuracy(Without Aid): 0.1 m/s2
> Advanced Technologies: EASY/LOCUS/AlwaysLocate/GLP/SDK/AIC/EPO/QuecFastFix Online
> Reacquisition: Time<1 s
> TTFF @-130dBm with XTRA: Cold Start < 4.5s
> TTFF @-130dBm with EASY: Cold/Warm/Hot Start Typ. 15s/5s/1s
> TTFF @-130dBm without EASY: Cold/Warm/Hot Start Typ. 35s/30s/1s
> Sensitivity:
- Acquisition: -149dBm
- Tracking: -167dBm
- Reacquisition: -161dBm
> Dynamic Performance:
- Maximum Altitude: 18000m
- Maximum Velocity: 515m/s
- Maximum Acceleration: 4G

> Dimensions: 25.6mm × 15.0mm × 2.3mm

> Weight Approx. 1.4g
