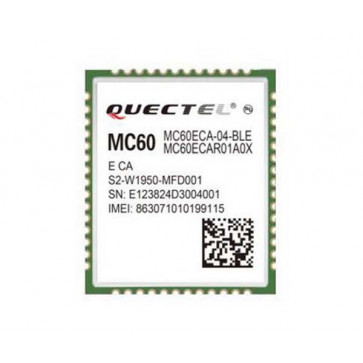

Quectel MC60E GSM/GPRS/GNSS BT4.0 Module

* Quectel 2G GSM/GPRS Module

* GSM quad-band: 850/900/1800/1900MHz

* Easier soldering process with LCC package

* Max. 85.6 kbps (uplink & downlink)

* Multi navigation constellation: GPS/ GLONASS/ QZSS

* 99 acquisition/33 tracking/210 PRN channels

* Support Voice, Data, SMS and QuecFOTA functions

Sign up for price alert

Availability: In stock


Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!


Quectel MC60E is a quad-band full-featured GSM/GPRS/GNSS module using LCC castellation package. It is fully pin-to-pin compatible with MC60, and supports both BT4.0 and BT3.0 specifications. BLE (Bluetooth Low Energy) technology features ultra-low peak, average and idel mode power consumption, making MC60E especially ideal for applications requiring energy efficient Bluetooth wireless conectivity. The module also supports Dual SIM Single Standby.

Quectel MC60E Module integrates both GPRS and GNSS engines in one compact and low profile SMT package. It supports EPO™ technology which provides predicted Extended Prediction Orbit to speed up TTFF without need of extra server. Based on EPO data, QuecFastFix Online function further reduces TTFF in cold start. EASY™ technology enables a very fast first fix when there is no enough satellite information. AlwaysLocate™ and GLP (GNSS Low Power) power saving modes ensure great positioning accuracy while with very-low power consumption. The built-in LNA provides the module with improved RF sensitivity and exceptional acquisition/tracking performance even in weak signal areas.

The compact form factor, great positioning performance, low power consumption and dual SIM card interfaces make MC60E a best choice for a wide range of M2M applications, such as automotive, telematics, wearable device, asset tracker, pet tracker, and so on.

Key Benefits

* Ultra compact size: 18.7 × 16.0 × 2.1mm

* Support Bluetooth 4.0 (GATT/PXP/FMP) and Bluetooth 3.0 (SPP/HFP-AG) specifications

* Easier soldering process with LCC package

* Power consumption as low as 1.2mA@DRX=5

* Support Voice, Data, SMS and QuecFOTA™ functions

* Embedded abundant Internet service protocols

* Built-in LNA for higher sensitivity: -149dBm@Acquisition, -167dBm@Tracking

* Multi-GNSS engine for GPS, GLONASS and QZSS

* 99 acquisition/33 tracking/210 PRN channels

* Advanced technologies: EASY™/LOCUS™/EPO™/AlwaysLocate™/GLP/SDK/QuecFastFix Online

* Great anti-jamming performance due to multi-tone active interface canceller

Quectel MC60E 2G Module Specifications:


> Quad-band 850/900/1800/1900MHz


> GPRS Multi-slot Class: 12

> GPRS Mobile Station: Class B

> Compliant to GSM Phase 2/2+:
- Class 4(2W @ 850/ 900MHz)
- Class 1(1W @ 1800/1900MHz)

> Supply Voltage Range: 3.3~4.6V 4.0V nominal

> Low Power Consumption
- 1.2mA @ DRX=5

> Operation Temperature: -40 °C to +85 °C

> Dimensions: 18.7mm × 16.0mm × 2.1mm

> Weight Approx. 1.3g

> Control via AT commands: GSM 07.07, 07.05 and other Enhanced AT Commands

> GPRS Class 12 data rates: Max. 85.6 kbps (uplink & downlink)


> Coding Schemes: CS 1, 2, 3, 4

> USSD: Support

> Non Transparent Mode: Support

> Speech Codec Modes
- Half Rate (HR)
- Full Rate (FR)
- Enhanced Full Rate (EFR)
- Adaptive Multi-Rate (AMR)

> Echo Arithmetic
- Echo Cancellation
- Echo Suppression
- Noise Reduction

> SIM/USIM card interface: x 2 (3V/ 1.8V)

> SD x 1

> UART: 3 x Interfaces(x 1 UART Port, x1 Debug Port, x1 GNSS UART Port)

> Analog Audio Channel: 2 x output channels and 1 input channel

* GNSS Features
> GPS L1 Band Receiver (1575.42MHz)
> GLONASS L1 Band Receiver (1601.71MHz)
> Channels 33 (Tracking)/99 (Acquisition)/210 (PRN)
> Horizontal Position Accuracy Accuracy: <2.5m CEP
> Velocity Accuracy(Without Aid): <0.1 m/s
> Acceleration Accuracy(Without Aid): 0.1 m/s2
> Advanced Technologies: EASY/LOCUS/AlwaysLocate/GLP/SDK/AIC/EPO/QuecFastFix Online
> Reacquisition: Time<1 s
> TTFF @-130dBm with XTRA: Cold Start < 4.5s
> TTFF @-130dBm with EASY: Cold/Warm/Hot Start Typ. 15s/5s/1s
> TTFF @-130dBm without EASY: Cold/Warm/Hot Start Typ. 35s/30s/1s
