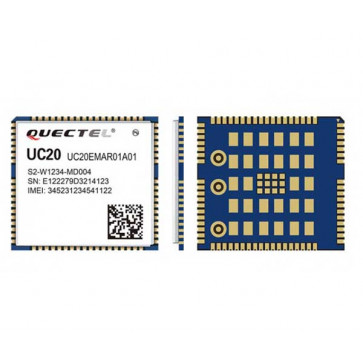

Quectel UC20 UMTS/HSDPA Module

* Quectel UMTS/HSDPA Module


* HSDPA speed up to 14.4Mbps


* Worldwide UMTS/HSDPA and GSM/GPRS/EDGE coverage


* GNSS receiver available for applications


* High-quality data and image transmission


* Robust mounting and interfaces

Sign up for price alert

Availability: In stock

$59.00
  • Buy 5 for $55.00 each and save 7%
  • Buy 10 for $53.00 each and save 11%

Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!

Details
Details

Quectel UC20 is a powerful UMTS/HSPA+ module offering maximally 14.4Mbps downlink and 5.76Mbps uplink data rates. The module is designed to provide customers with global network coverage on the connectivity of UMTS/HSPA+, and it is also fully backward compatible with the existing EDGE and GSM/GPRS networks.

Its compact profile of 29.0mm × 32.0mm × 2.5mm in cost-optimized SMT form factor and high integration level enables integrators and developers to easily design their applications and truly benefit from the module’s multi-functionality, low power consumption and mechanical intensity. Its advanced LCC package is ideally suited for large-scale manufacturing which has strict requirements for cost and efficiency.

A rich set of Internet protocols, industry-standard interfaces and abundant functions (such as USB serial drivers for Windows 7/8/8.1/10, Windows CE, Linux, Android/eCall/GNSS) extend the applicability of the module to a wide range of M2M applications such as automotive applications, smart metering, tracking systems, security solutions, routers, wireless POS terminals, mobile computing devices, PDAs and tablet PCs.


Key Benefits

* Worldwide UMTS/HSPA+ and GSM/GPRS/EDGE coverage

* GNSS receiver available for applications requiring fast and accurate fixes in any location

* High-quality data and image transmission even in a harsh environment

* Primary and diversity receive paths are designed for equivalent noise-figure performance

* Robust mounting and interfaces

* Fast time-to-market: reference designs, evaluation tools and timely technical support minimize design-in time and development efforts

Quectel UC20 3G module Specifications:

Quectel UC20 sub-models

* Quectel UC20-G:
> 3G 800/850/900/1900/2100MHz @UMTS
> 2G 850/900/1800/1900MHz @GSM


* Data Rates
> HSDPA: Max.14.4Mbps (DL)
> HSUPA: Max.5.76Mbps (UL)
> WCDMA: Max.384Kbps (DL)/Max.384Kbps (UL)
> EDGE: Max.236.8Kbps (DL/UL)
> GPRS: Max. 85.6Kbps (DL)/Max. 85.6Kbps (UL)
> GSM: 14.4Kbps (DL)/14.4Kbps (UL)
> CSD: Max.14.4Kbps (DL)/ Max. 14.4Kbps (UL)


* Voice
> Speech Codec Modes: HR, FR, EFR, AMR, AMR-WB
> Echo Arithmetic: Echo Cancellation, Noise Reduction


* SMS
> Point-to-point MO and MT
> SMS Cell Broadcast
> Text and PDU Mode

* Interfaces
> UART x 2: Main UART, Debug UART
> (U)SIM × 1 : 1.8V/ 3.0V (U)SIM Card
> USB × 1 : USB 2.0 with High Speed up to 480Mbps
> PCM and I2C Interfaces: Digital Audio through PCM Interface (Optional)
> ADC × 2 : 15 Bits
> Control and Indicator Signals
> Solder Pads for Main and GNSS Antennas
> STATUS for Power ON/OFF Status Indication
> RTC Backup
> SD Card Interface
> RESET
> PWRKEY

* Enhanced Features
> eCall
> (U)SIM Card Insertion Detection
> Firmware Update: via USB or UART Interface
> QuecFile: File System Access and Management
> FOTA: QuecFOTA/DFOTA
> GNSS: GPS/GLONASS


* GNSS Features
> Qualcomm gpsOne Gen8 with 16 GPS Channels and 14 GLONASS Channels
> SBAS (WAAS/EGNOS/MSAS)
> Support XTRA™ Technology
> Accuracy <1.5m CEP-50 @Open Sky

- TTFF @-130dBm with XTRA™: Cold/Warm/Hot Start: Typ. 22s/3s/2s
- TTFF @-130dBm without XTRA™: Cold/Warm/Hot Start: Typ. 32s/29s/2.5s
- Sensitivity with LNA: Cold Start/Reacquisition/Tracking: -147dBm/-159dBm/-161dBm
- Power Saving Mode: DPO Mode
- Dedicated GNSS AT Commands


* Software Features

- USB Driver:
> Windows 7/8/8.1/10,
> Windows CE 5.0/6.0/7.0*,
> Linux 2.6/3.x/4.1~4.14
> Android 4.x/5.x/6.x/7.x

- RIL Driver: Android 4.x/5.x/6.x/7.x

- NDIS Driver: Windows 7/8/8.1/10

- Gobinet Driver: Linux 2.6/3.x/4.1~4.14

- QMI_WWAN Driver: Linux 3.x(3.4 or later)/4.1~4.14

- Protocols: PPP/TCP/UDP/FTP/HTTP/FILE/MMS/SMTP/SSL


* General Features

> Extended Temperature: -40°C ~ +85°C
> Dimensions: 29.0mm × 32.0mm × 2.5mm
> Weight: Approx. 4.9g
> Supply Voltage: 3.3V~4.3V, 3.8V Typ.
> GPRS/EDGE: Multi-slot Class 12 (10 by Default)
> WCDMA: Release 99
> GSM: Release 99/4
> HSPA+: Release 5/6 (UL Category 6, DL Category 10)
> 3GPP TS 27.007, 3GPP TS 27.005 and Quectel Enhanced AT Commands


* Approvals
> RoHS Compliant
> GCF/Vodafone (Global)
> CE (Europe)
> FCC/PTCRB/AT&T (North America)
> RCM (Australia & New Zealand)
> JATE/TELEC (Japan)
> IC/Rogers (Canada)
> Anatel (Brazil)
> NBTC (Thailand)
