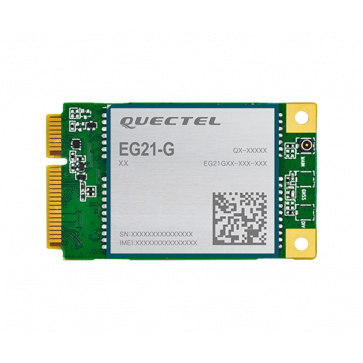

Quectel EG21-G Mini PCIe LTE Cat1 Module

* Quectel LTE Cat1 Module

* Form factor: MINI PCIe Package

* LTE DL 10Mbps, UL 5Mbps

* 3GPP E-UTRA Release 11

* DFOTA: Delta Firmware Upgrade Over-The-Air

* GNSS: GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS(Optional)

Sign up for price alert

Availability: In stock


Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!


Quectel EG21-G Mini PCIe is an LTE category 1 module adopting standard PCI Express® Mini Card form factor (Mini PCIe). It is optimized specially for M2M and IoT applications, and delivers maximum data rates up to 10Mbps downlink and 5Mbps uplink.

Quectel EG21-G Mini PCIe is backward-compatible with existing EDGE and GSM/GPRS networks, ensuring that it can be connected even in remote areas devoid of 4G or 3G coverage.

Quectel EG21-G Mini PCIe supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and dependable positioning.

A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB serial drivers for Windows 7/8/8.1/10, Linux, Android/eCall*) extend the applicability of the module to a wide range of M2M applications such as smart metering, wearable devices, environmental monitoring, asset tracking, fleet management, security and alarm systems, and so on.

Key Benefits

* LTE category 1 module optimized for broadband IoT applications

* Worldwide LTE, UMTS/HSPA(+) and GSM/GPRS/EDGE coverage

* Standard PCI Express® Mini Card form factor (Mini PCIe) ideal for manufacturers to easily integrate wireless connectivity into their devices

* MIMO technology meets demands for data rate and link reliability in modem wireless communication systems

* Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment

Quectel EG21-G Mini PCIe Module Specifications:

* Quectel EG21-G Mini PCIe
- LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28
- LTE-TDD: B38/B39/B40/B41
- WCDMA: B1/B2/B4/B5/B6/B8/B19
- GSM: B2/B3/B5/B8

* Data rates:
- LTE-FDD: Max 10Mbps (DL)/Max 5Mbps (UL)
- LTE-TDD: Max 8.96Mbps (DL)/Max 3.1Mbps (UL)
DC-HSDPA: Max 42Mbps (DL)
HSUPA: Max 5.76Mbps (UL)
WCDMA: Max 384Kbps (DL)/Max 384Kbps (UL)
- GSM:
EDGE: Max 296Kbps (DL)/Max 236.8Kbps (UL)
GPRS: Max 107Kbps (DL)/Max 85.6Kbps (UL)

* Speech Codec Modes: HR/FR/EFR/AMR/AMR-WB

* Echo Arithmetic: Echo Cancellation/Noise Suppression

* Audio: Digital Audio and VoLTE (Voice over LTE)(Optional)

* Interfaces
- USB x 1: USB 2.0 with High Speed up to 480Mbps
- PCM x 1: Digital Audio through PCM (Optional)
- I2C x 1
- (U)SIM x 1: 1.8V/3.0V (U)SIM Interface
- UART × 1: Main UART
- LED_WWAN# for Network Status Indication
- W_DISABLE# for Disabling RF Function
- PERST# for Module Resetting
- Main, Rx-diversity and GNSS Antenna Connectors

* Enhanced Features
- eCall*
- QuecLocator®
- Downlink MIMO (Supports Rx-diversity Antenna)
- DFOTA: Delta Firmware Upgrade Over-The-Air
- GNSS: GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS(Optional)

* Output Power:
- Class 3 (23dBm±2dB) for LTE-FDD bands
- Class 3 (23dBm±2dB) for LTE-TDD bands
- Class 3 (24dBm+1/-3dB) for WCDMA bands
- Class E2 (27dBm±3dB) for GSM850 8-PSK
- Class E2 (27dBm±3dB) for EGSM900 8-PSK
- Class E2 (26dBm±3dB) for DCS1800 8-PSK
- Class E2 (26dBm±3dB) for PCS1900 8-PSK
- Class 4 (33dBm±2dB) for GSM850
- Class 4 (33dBm±2dB) for EGSM900
- Class 1 (30dBm±2dB) for DCS1800
- Class 1 (30dBm±2dB) for PCS1900

* Consumption:
- 3.6mA @Sleep, Typ.
- 35mA @Idle

* Sensitivity:
- LTE B1: -99.5dBm (10MHz)
- LTE B2: -99.9dBm (10MHz)
- LTE B3: -99.7dBm (10MHz)
- LTE B4: -99.7dBm (10MHz)
- LTE B5: -99.9dBm (10MHz)
- LTE B7: -99.2dBm (10MHz)
- LTE B8: -99.8dBm (10MHz)
- LTE B12: -99.8dBm (10MHz)
- LTE B13: -99.5dBm (10MHz)
- LTE B18: -100dBm (10MHz)
- LTE B19: -99.9dBm (10MHz)
- LTE B20: -99.8dBm (10MHz)
- LTE B25: -100dBm (10MHz)
- LTE B26: -99.5dBm (10MHz)
- LTE B28: -99.6dBm (10MHz)
- LTE B38: -98dBm (10MHz)
- LTE B39: -99.5dBm (10MHz)
- LTE B40: -99.2dBm (10MHz)
- LTE B41: -97.5dBm (10MHz)
- WCDMA B1: -109.2dBm
- WCDMA B2: -110dBm
- WCDMA B4: -109.7dBm
- WCDMA B5: -110.4dBm
- WCDMA B6: -110.5dBm
- WCDMA B8: -110.5dBm
- WCDMA B19: -110.1dBm
- GSM850: -108dBm
- EGSM900: -108dBm
- DCS1800: -107.5dBm
- PCS1900: -107.5dBm

* Software Features
USB Serial Driver:
- Windows 7/8/8.1/10,
- Linux 2.6~5.4,
- Android 4.x/5.x/6.x/7.x/9.x
GNSS Driver: Android 4.x/5.x/6.x/7.x/8.x/9.x
RIL Driver: Android 4.x/5.x/6.x/7.x/8.x/9.x
NDIS Driver: Windows 7/8/8.1/10
GobiNet Driver: Linux 2.6~5.4
MBIM Driver: Windows 8/8.1/10, Linux 3.18~5.4
QMI_WWAN Driver: Linux 2.6~5.4

* General Features
- Operation Temperature Range: -35°C ~ +75°C
- Extended Temperature Range: -40°C ~ +85°C
- Dimensions: 51.0mm x 30.0mm x 4.9mm
- Weight: Approx. 9.8g
- LGA Package
- Supply Voltage: 3.0V~3.6V, 3.3V Typ.
- 3GPP E-UTRA Release 11
- Bandwidth: 1.4/3/5/10/15/20MHz
- 3GPP TS27.007, 27.005 and Enhanced AT Commands

* Approvals
Deutsche Telekom (Europe)
Verizon/AT&T/Sprint/U.S. Cellular/T-Mobile*
(North America)
Telus/Rogers* (Canada)
GCF (Global)
CE (Europe)
FCC/PTCRB (North America)
IC (Canada)
Anatel (Brazil)
IFETEL (Mexico)
KC (South Korea)
NCC (Taiwan, China)
RCM (Australia & New Zealand)
FAC* (Russia)
NBTC (Thailand)
IMDA (Singapore)
ICASA (South Africa)

* Others:
- RoHS
