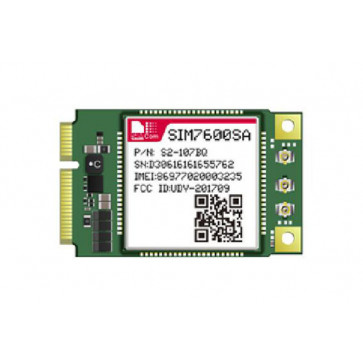

SIMCOM SIM7600SA Mini PCIe LTE Cat1 Module

* SIMCOM LTE Cat1 Module

* Package: Mini PCIe

* LTE DL 10Mbps/UL 5Mbps

* Target market: EMEA/Korea/Thailand

* Support 4G LTE B1/B2/B3/B4/B5/B7/B8/B28/B40

Sign up for price alert

Availability: In stock


Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!


SIMCOM SIM7600SA-PCIe is a complete multi-band LTE-FDD/LTE-TDD/HSPA+/WCDMA/EDGE/GPRS/GSM module solution in Mini PCIe type which supports LTE CAT1 up to 10Mbps for downlink and 5Mbps for uplink data transfer. It is combined with a SIM7600SA(LCC) module and a Mini PCIe adapter board.

SIMCOM SIM7600SA-PCIe module Specifications:

* LTE Category 1 Module

* Package: Mini PCIe

* Target market: Australia/New Zealand/South America

* Support 4G LTE FDD Band B1/B2/B3/B4/B5/B7/B8/B28 and TDD Band B40

* Support 3G UMTS/HSPA+ B1/B2/B5/B8 and 2G GSM/GPRS/EDGE 850/900/1800/1900MHz

* LTE Downlink up to 10Mbps, Uplink up to 5Mbps

* HSPA+ Downlink up to 42Mbps, Uplink up to 5.76Mbps

* WCDMA Downlink/Uplink up to 384Kbps

* EDGE Downlink/Uplink up to 236.8Kbps

* GPRS Downlink/Uplink up to 85.6Kbps

* Interfaces
- USB2.0 with High speed up to 480Mbps
- Antenna: Solder pads for Primary, Rx-diversity and GNSS antennas
- (U)SIM card (1.8V/3.0V)
- Digital Audio through PCM(Optional)
- Analog Audio (Optional)
- Embedded SIM card socket (Optional)
- GNSS: GPS/GLONASS/Beidou/Galileo*

* Other features
- USB Driver for Microsoft Windows 2000/XP/Vista/Win7/Win8/Win10
- USB Driver for Linux /Android
- RIL supporting for Android 2.4/4.0/5.0/6.0/7.0
- MBIM to Win8
- Firmware update via USB
- SSL3.0/TLS1.0/TLS1.2
- DTMF (Sending and Receiving)
- Audio Playing
- USB Audio and VoLTE

* Certifications
- RoHS Compliant

* Control Via AT Commands

* Supply voltage range: 3.0V~ 3.6V, 3.3V Typical

* Operation temperature: -40℃to +85℃

* Bandwidth: 1.4/3/5/10/15/20MHz

* 3GPP E-UTRA Release 11

* Dimensions: 50.8*31*5.35mm

* Weight: 12.6g
