SIMCOM SIM7600A Mini PCIe LTE Cat1 Module

SIMCOM SIM7600A-PCIe is a complete multi-band LTE-FDD/LTE-TDD/HSPA+/WCDMA/EDGE/GPRS/GSM module solution in Mini PCIe type which supports LTE CAT1 up to 10Mbps for downlink and 5Mbps for uplink data transfer. It is combined with a SIM7600A(LCC) module and a Mini PCIe adapter board.

SIMCOM SIM7600A-PCIe module Specifications：

* LTE Category 1 Module

* Package: Mini PCIe

* Target market: North America

* Support 4G LTE FDD Band B2/B4/B12

* Support 3G UMTS/HSPA+ B2/B5

* LTE Downlink up to 10Mbps, Uplink up to 5Mbps

* HSPA+ Downlink up to 42Mbps, Uplink up to 5.76Mbps

* WCDMA Downlink/Uplink up to 384Kbps

* EDGE Downlink/Uplink up to 236.8Kbps

* GPRS Downlink/Uplink up to 85.6Kbps

* Interfaces
- USB2.0 with High speed up to 480Mbps
- UART
- GPIO
- Antenna: Solder pads for Primary, Rx-diversity and GNSS antennas
- (U)SIM card (1.8V/3.0V)
- Digital Audio through PCM(Optional)
- Analog Audio (Optional)
- Embedded SIM card socket (Optional)
- GNSS: GPS/GLONASS/Beidou/Galileo*

* Other features
- USB Driver for Microsoft Windows 2000/XP/Vista/Win7/Win8/Win10
- USB Driver for Linux /Android
- RIL supporting for Android 2.4/4.0/5.0/6.0/7.0
- MBIM to Win8
- Firmware update via USB
- TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS /HTTP/HTTPS/DNS
- SSL3.0/TLS1.0/TLS1.2
- DTMF (Sending and Receiving)
- Audio Playing
- USB Audio and VoLTE
- FOTA

* Certifications
- RoHS Compliant
- FCC/PTCRB/AT&T

* Control Via AT Commands

* Supply voltage range: 3.0V~ 3.6V, 3.3V Typical

* Operation temperature: -40℃to +85℃

* Bandwidth: 1.4/3/5/10/15/20MHz

* 3GPP E-UTRA Release 11

* Dimensions: 50.8*31*5.35mm

* Weight: 12.6g

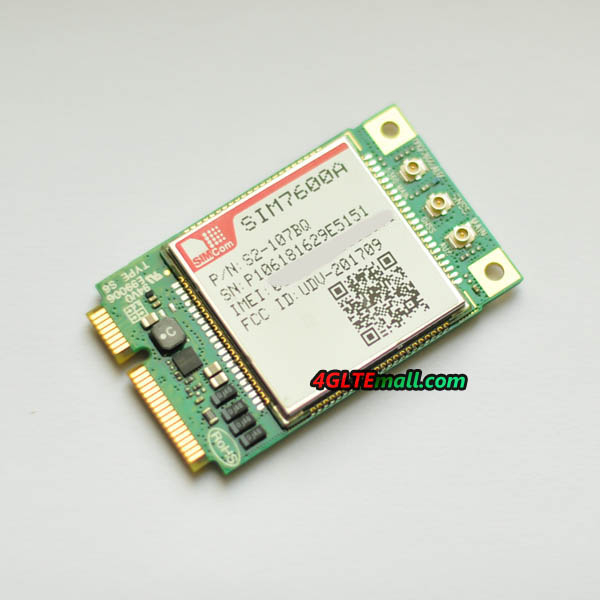

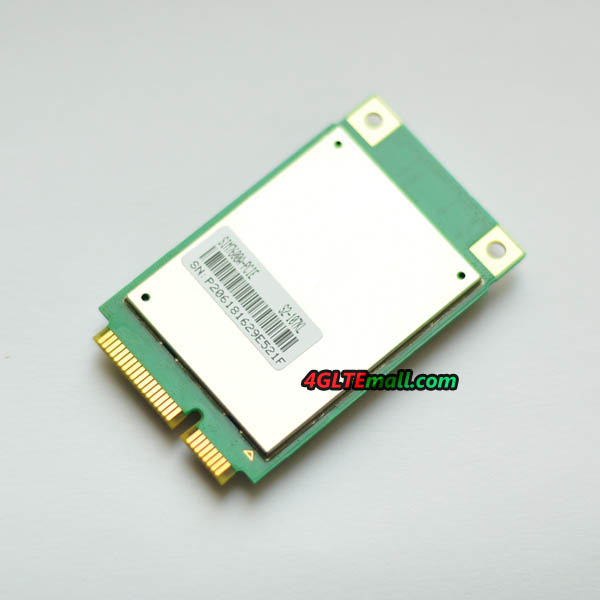

SIMCOM SIM7600A-PCIe LTE Cat1 Module Images:
