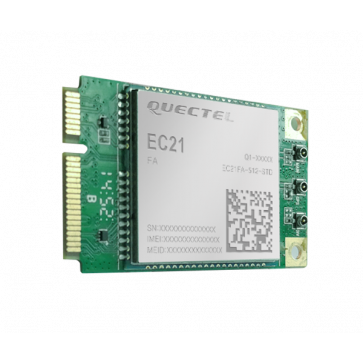

Quectel EC21 Mini PCIe LTE Cat1 Module

* LTE Cat.1 Mini PCIe Module


* Worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage


* Standard PCI Express MiniCard form factor


* LTE DL 10Mbps, UL 5Mbps


* Firmware Update via USB


* Seven variants: EC21-E, EC21-A, EC21-V and EC21-AU, EC21-AUT, EC21-J, EC21-KL

Sign up for price alert

Availability: In stock

$129.00

Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!

Details
Details

Quectel EC21 Mini PCIe is a series of LTE category 1 module adopting standard PCI Express® MiniCard form factor (Mini PCIe). Especially optimized for M2M and IoT applications, it features cost-saving, low power LTE connectivity, and delivers M2M-optimized speeds of 10Mbit/s downlink and 5Mbit/s uplink. These make it ideal for numerous IoT applications that are not reliant on high speed connectivity but still require the longevity and reliability of LTE networks.

Quectel EC21 Mini PCIe contains 7 variants: EC21-V Mini PCIe, EC21-A Mini PCIe, EC21-AU Mini PCIe, EC21-J Mini PCIe, EC21-KL Mini PCIe, EC21-AUT Mini PCIe and EC21-E Mini PCIe. This makes it backward-compatible with existing EDGE and GSM/GPRS networks, ensuring that it can easily migrate from LTE to 2G or 3G networks.

Quectel EC21 Mini PCIe supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou, Galileo and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning.

A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB drivers for Windows XP, Windows Vista, Windows 7/8/8.1/10, Linux, Android/eCall) extend the applicability of the module to a wide range of M2M applications such as smart metering, tracking and tracing, fleet management, wearable devices, smart home gateways, digital signs, and even drones.


Key Benefits

* Cost-effective, lower-power LTE connectivity optimized for broadband IoT applications

* Worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage

* Standard PCI Express® MiniCard form factor (Mini PCIe) ideal for manufacturers to easily integrate wireless connectivity into their devices

* MIMO technology meets demands for data rate and link reliability in modem wireless communication systems

* Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment


Quectel EC21 Mini PCIe Module Technical Specifications:

* LTE Cat.1 Module

* Frequency bands:
- EC21-V Mini PCIe(Variants for North America):
> LTE FDD: B4/B13

- EC21-A Mini PCIe(Variants for North America):
> LTE FDD: B2/B4/B12
> WCDMA: B2/B4/B5

- EC21-AU Mini PCIe(Variants for Australia/Taiwan/Brazil):
> LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28
> LTE TDD: B40
> WCDMA: B1/B2/B5/B8
> GSM: B2/B3/B5/B8

- EC21-AUT Mini PCIe(Variants for Australia/Taiwan/Brazil ):
> LTE FDD: B1/B3/B5/B7/B28
> WCDMA: B1/B5


- EC21-E Mini PCIe(Variant for EMEA/Korea/Thailand):
> LTE FDD: B1/B3/B5/B7/B8/B20
> WCDMA: B1/B5/B8
> GSM: 900/1800MHz


- EC21-J Mini PCIe(Variant for Japan):
> LTE FDD: B1/B3/B8/B18/B19/B26

- EC21-KL Mini PCIe(Variant for Korea):
> LTE FDD: B1/B3/B5/B7/B8


* Data Rates:
- LTE-FDD: Max 10Mbps (DL) Max 5Mbps (UL)
- DC-HSPA+: Max 42Mbps (DL) Max 5.76Mbps (UL)
- UMTS: Max 384Kbps (DL) Max 384Kbps (UL)
- EDGE: Max 236.8Kbps (DL) Max 236.8Kbps (UL)
- GPRS: Max 85.6Kbps (DL) Max 85.6Kbps (UL)


* Speech Codec Modes: HR/FR/EFR/AMR/AMR-WB

* Echo Arithmetic: Echo Cancellation/Noise Reduction

* VoLTE*: Digital Audio and VoLTE (Voice over LTE)(Optional)

* 3GPP E-UTRA Release 11

* Bandwidth: 1.4/3/5/10/15/20MHz

* Antenna: Supports Rx-diversity

* Supply Voltage: 3.0V~3.6V, 3.3V Typ

* Operation Temperature: -40°C ~ +80°C

* Dimensions: 51.0mm × 30.0mm × 4.9mm

* Package: Mini PCIe

* Weight: Approx. 9.8g

* Control via AT Commands: 3GPP TS27.007 and enhanced AT Commands

* eCall*

* DFOTA*: Delta Firmware Upgrade over the Air

* GNSS: GPS/GLONASS/BeiDou/Galileo/QZSS(Optional)

* Protocols: TCP/UDP/PPP/FTP/HTTP/NTP/PING/QMI/HTTPS*/SMTP*/MMS*/FTPS*/SMTPS*/SSL*


* Derivers
- USB Serial: Windows XP, Windows Vista, Windows 7, Windows 8/8.1, Windows CE5.0/6.0/7.0, Linux 2.6/3.x/4.1, Android 4.x/5.x/6.0
- RIL Driver: Android 4.x/5.x/6.0
- NDIS Driver: Windows 7/8/8.1/10
- ECM Driver: Linux 2.6/3.x/4.1
- Gobinet Driver: Linux 2.6/3.x/4.1
- Linux qmi wwan Driver: 3.x (3.4 and later)/4.1


* Interfaces
- USB 2.0 Device: High Speed, 480Mbps
- PCM ×1, Digital Audio through PCM Interface (Optional)
- USIM 1.8V/3.0V
- LED_WWAN# for Network Status Indication
- W_DISABLE# for Disabling RF Function
- UART × 1
- PERST# for Module Resetting


* Approvals:
- RoHS Compliant
- CE/GCF/Vodafone (Europe)
- FCC/PTCRB/AT&T*/Verizon* (North America)
- RCM/Telstra (Australia)
- JATE/TELEC/DOCOMO*/Softbank* (Japan)
- NCC (Taiwan)
- KC/SKT/KT*/LGU+* (Korea)
- IC/Rogers (Canada)
- Anatel* (Brazil)
