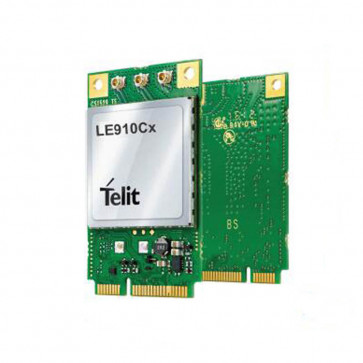

Telit LE910C1-SA LTE Cat1 Mini PCIe Module

Telit LE910C1-SA belongs to Telit LE910C1 Series and it's an LTE Cat.1 module supporting download speed to 10Mbps and upload speed to 5Mbps. Telit LE910C1-SA is compliant with the 3GPP Release 10 in a compact 181-pin LGA interafce form factor. It has a brother model LE910C1-NA also for North American market(AT&T).

Telit LE910C1-SA cellular module Specs:

* Telit LTE Cat.1 Module

* Target market: North America(AT&T, FirstNet)

* Support 4G Bands(MHz): B2, B4, B12, B14, B66

* Support 3G Bands(MHz): N/A

* Support 2G Bands(MHz): N/A

* LTE Cat.1 data rate: Uplink up to 5 Mbps, Downlink up to 10 Mbps

* DC-HSPA+ Download speed to 42Mbps

* LTE FDD Cat.1, 3GPP release 10 compliant

* Rx Diversity and MIMO DL 2x2

* Single Rx option

* VoLTE support

* SMS over IMS

* Built in UDP/TCP/FTP/SMTP stack

* IPv4/IPv6 stack

* Control via AT commands according to 3GPP TS 27.005, 27.007 and Telit Custom AT commands

* SIM application Tool Kit 3GPP TS 51.014

* OMA-DM Telit Software Management

* Simultaneous support of GPS, Glonass, Bei-dou, Galileo, QZSS

* Dimensions 28.2 x 28.2 x 2.2 mm

* Temperature Range: -40°C to +85°C

* REACH and RoHS compliant

* Interfaces
- 181-pin LGA Interface
- 10 I/O ports (@1.8V) including multifunctional I/Os
- USB 2.0 HS / HSIC
- UART
- SPI
- PCM
- 1.8 V / 3 V SIM interface
- RF pad, RX Div. & MIMO pad

* Electrical & Sensitivity
- Output power: Class 3 (0.2 W, 23 dBm) @ LTE
- Supply voltage: Nominal: 3.8 VDC/ Range: 3.3 - 4.2 VDC

* Approvals
- FCC /IC, PTCRB , (North America)
- RCM (Australia)
