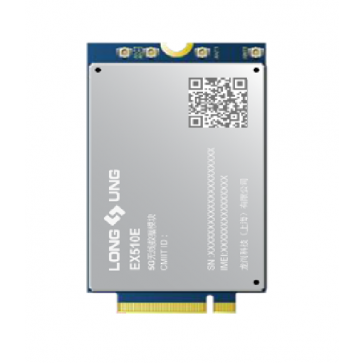

Longsung EX510E 5G NR Module

LongSung EX510E module Specifications:

* Product type: 5G Wireless Module

* Form factor: M.2 package

* Chipset: Qualcomm SDX55 5G modem

* Frequency Bands:
- 5G NR: N1/N2/N3/N5/N7/N8/N12/N20/N25/N28/N40/N41/N66/N71/N77/N78/N79
- LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71
- LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48
- UMTS: B1/B2/B3/B4/B5/B8
- GNSS: L1: 1575.42+/-10MHz

* Data rates:
- 5G NA_SA: 900Mbps(UL), 2Gbps(DL)
- FDD-LTE CAT20+: Max 2.0Gbps(DL), 300Mbp(UL)
- TDD-LTE CAT20+: Max 2.0Gbps(DL), 300Mbp(UL)
- DC-HSPA+: 5.76Mbps(UL), 42Mbps(DL)

* GNSS: GPS/GLONASS/BeiDou/Galileo/QZSS

* AT Command: support standard AT commends(Hayes 3GPP TS 27.007 and 27.005) and LongSung AT commands

* Interfaces:
- Power interface
- USB2.0/3.1
- PCEe Gen3.0
- MIPI
- USIM/SIM
- I2S/PCM
- I2C
-GPIO
- RF Antenna

* Power voltage: 3.3v ~ 4.3v(typ 3.8v)

* Temperature:
- Working temperature: -30°C to +75°C
- Storage temperature: -45°C to +95°C

* Antenna:
- 5G Main antenna
- WCDMA/LTE Diversity antenna
- GNSS antenna

* Dimensions: 52.0 x 30.0 x 2.3mm

* Weight: <15g
