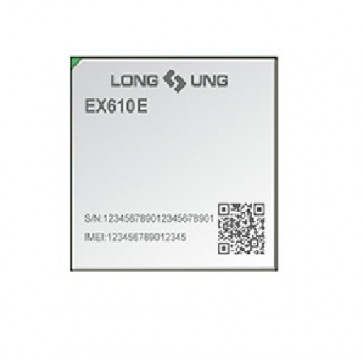

LongSung EX610E 5G NR LGA Module

LongSung EX610E 5G module Specifications:

* Product type: 5G Wireless Module

* Chipset: Qualcomm Snapdragon X55 Modem

* Form factor/package: LGA

* Support Sub-6G/mmWave/LTE-TDD/LTE-FDD/WCDMA networks

* Support 5G Band: N1/N2/N3/N5/N7/N8/N12/N20/N25/N28/N40/N41/N66/N71/N77/N78/N79

* Support LTE FDD Band: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71

* Support LTE TDD Band: B34/B38/B39/B40/B41/B42/B43/B48

* Support LTE DL 4 x 4 MIMO: B1/B2/B3/B4/B7/B25/B30/B38/B40/B41/B42/B43/B48/B66

* Support UMTS Band: B1/B2/B3/B4/B5/B8

* Specifications for data:

- Support Release 15
- Support SA / NSA
- 5G up to 4Gbps DL,300Mbps UL
- LTE-FDD up to 2.4 Gbps DL,200 Mbps UL
- LTE-TDD up to 2.4 Gbps DL,200 Mbps UL
- DC-HSPA+ up to 42.2Mbps DL,5.76Mbps UL
- Non transparent mode
- FOTA
- NDIS

* General features:

- Output power: Class 3 (0.25W) for LTE/UMTS
- Control via AT commands
- Supply voltage range: 3.2V- 4.4V
- Dimensions: 52.0×30.0×2.3mm
- GNSS (GPS,GLONASS and BeiDou)
- Sub-6G/mmWave/LTE-TDD/LTE-FDD/WCDMA
- Operation Temperature: -40°C to +85°C
- MSL：3

* Additional features:

- NoVR/VoLTE/CSFB
- AGPS/SUPL2.0
- Dedicated GNSS_L1 and GNSS_L2/L5
- DTMF

* Protocols: TCP/ UDP/ PPP/ FTP/ HTTP/ HTTPS/ SMTP/ SMTPS/ MMS/ FTPS/ NTP/ PING/ QMI/ SSL/ NITZ/ CMUX/ MQTT
