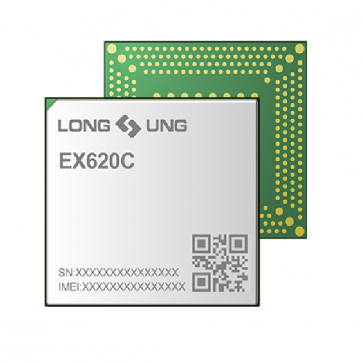

LongSung EX620C 5G Sub6 M.2 Module
* Chipset: Qualcomm 315 5G IoT modem
* Form Factor: M.2
* 5G Speeds DL to 1.5Gbps, UL to 375Mbps
Availability: In stock
LongSung EX620C is a new multi-Band 5G NR/LTE-FDD/LTE-TDD module which supports R15 5G SA up to 1.5Gbps data transfer. It has strong extension capability with abundant interfaces including PCIe, USB3.1, GPIO etc. The module provides much flexibility and ease of integration for customer's applications. The EX620C adopts LGA form factor. AT commands of EX620C are compatible with EX6X0 series modules. This also minimizes the investments of customers and enables a short time-to-market. It is designed for applications that need high throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited.
LongSung EX620C 5G module Specifications:
* Product type: 5G wireless module
* Chipset: Qualcomm 315 5G IoT modem
* Form Factor: LGA
* Dimensions(mm):41.0*43.6.0
* Data Transfer:
- Sub-6G:1.5Gbps(DL)/375Mbps(UL)
- LTE:400Mbps(DL)/100Mbps(UL)
More detail specs will be updated soon.....
