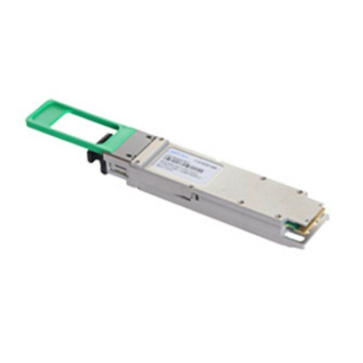

INNOLight T-OL8CNM-N00 800G OSFP Optical Transceiver Module

InnoLight T-OL8CNM-N00 is an ultra-high-speed 800G OSFP optical transceiver module engineered for high-density hyperscale data centers, large cloud computing fabrics, and next-generation AI backbone infrastructures.

InnoLight T-OL8CNM-N00 Optical Transceiver Specifications

Optical & Performance Specifications
------------------------------------------------------------
* Maximum Data Rate: 800 Gbps (Aggregated payload)
* Optical Interface Layout: Multi-lane configuration operating at 106.25 Gbps PAM4 per channel
* Laser Technology: Cooled EML CWDM or parallel single-mode laser arrays with PIN photodiode receiver
* Modulation Type: PAM4 (Pulse Amplitude Modulation 4-Level)
* Center Wavelength: 1310 nm or CWDM grid spacing (1271nm, 1291nm, 1311nm, 1331nm)
* Fiber Media Type: Single-Mode Fiber (SMF)
* Maximum Cable Reach: Up to 500 meters (1640 feet)
* Error Correction: Requires Host-side System FEC

Electrical & Physical Hardware
------------------------------------------------------------
* Module Form Factor: OSFP (with top-integrated thermal cooling fins)
* Electrical Interface: 8 channels x 106.25 Gbps electrical host configurations
* Optical Connector Type: MTP/MPO or dual LC-Duplex (breakout dependent)
* Management Interface: I2C serial interface, OSFP MSA and CMIS 4.0 compliant
* Telemetry Monitored: Real-time optical diagnostics, temperature, voltage
* Power Consumption: Maximum 16.0 W peak power envelope
