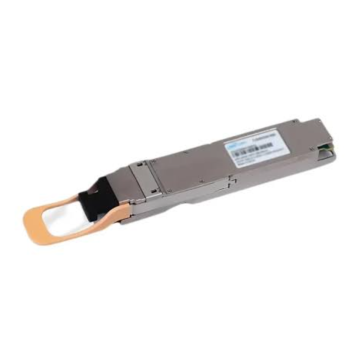

INNOLight T-OL8CNT-N00 800G OSFP Optical Transceiver Module

InnoLight T-OL8CNT-N00 is an ultra-high-speed 800G OSFP optical transceiver module designed for high-density hyperscale data centers, large cloud computing fabrics, and next-generation AI backbone infrastructures.

InnoLight T-OL8CNT-N00 Optical Transceiver Specifications

Optical & Performance Specifications
------------------------------------------------------------
* Maximum Data Rate: 800 Gbps (Aggregated payload)
* Optical Architecture: 2xFR4 (8 channels x 106.25 Gbps PAM4)
* Laser Technology: Cooled EML CWDM lasers with PIN photodiode receiver
* Modulation Type: PAM4 (Pulse Amplitude Modulation 4-Level)
* Wavelength Matrix: 1271 nm, 1291 nm, 1311 nm, 1331 nm
* Wavelength Range: 1265 nm to 1337 nm
* Fiber Media Type: Single-Mode Fiber (SMF)
* Maximum Cable Reach: Up to 2 km to 3 km
* Error Correction: Requires Host-side System FEC

Electrical & Physical Hardware
------------------------------------------------------------
* Module Form Factor: OSFP (with top-integrated thermal cooling fins)
* Electrical Interface: 8 channels x 106.25 Gbps electrical host lanes
* Optical Connector Type: Dual LC-Duplex PC
* Management Interface: I2C serial interface, OSFP MSA and CMIS 4.0 compliant
* Telemetry Monitored: Real-time optical diagnostics, temperature, voltage
* Power Consumption: Maximum 16.0 W peak power envelope
