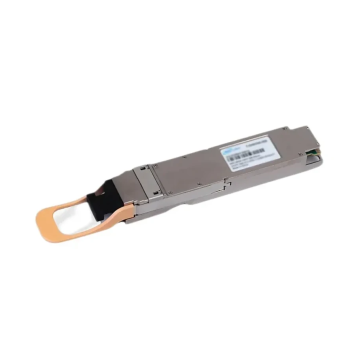

INNOLight T-OL8CNL-N00 800G OSFP Optical Transceiver Module

InnoLight T-OL8CNL-N00 is an ultra-high-speed 800G OSFP optical transceiver module engineered for long-haul hyperscale data center interconnects (DCIs), cloud architectures, and next-generation AI core switching infrastructures.

InnoLight T-OL8CNL-N00 Optical Transceiver Specifications

Optical & Performance Specifications
------------------------------------------------------------
* Maximum Data Rate: 800 Gbps (Aggregated payload)
* Optical Architecture: 2xLR4 (8 channels x 106.25 Gbps PAM4)
* Laser Technology: Cooled EML CWDM lasers with high-sensitivity receiver array
* Modulation Type: PAM4 (Pulse Amplitude Modulation 4-Level)
* Wavelength Matrix: 1271 nm, 1291 nm, 1311 nm, 1331 nm
* Fiber Media Type: Single-Mode Fiber (SMF)
* Maximum Cable Reach: Up to 10 km (6.2 miles)
* Error Correction: Requires Host-side System FEC

Electrical & Physical Hardware
------------------------------------------------------------
* Module Form Factor: OSFP (with top-integrated thermal cooling fins)
* Electrical Interface: 8 channels x 106.25 Gbps electrical host signaling
* Optical Connector Type: Dual LC-Duplex
* Management Interface: I2C serial interface, OSFP MSA and CMIS 4.0 compliant
* Telemetry Monitored: Laser bias current, temperature, supply voltage
* Power Consumption: Up to 16.0 W peak power envelope
