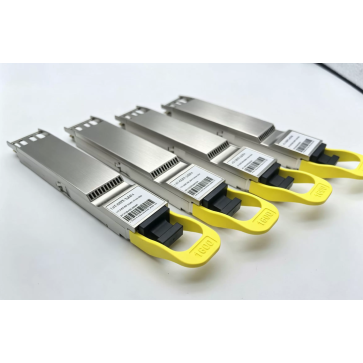

InnoLight T-OH8ENH-N00 800G OSFP Optical Transceiver Module

InnoLight T-OH8ENH-N00 is an ultra-high-speed 800G OSFP optical transceiver module engineered for high-density hyperscale data centers, large cloud computing fabrics, and next-generation AI backbone infrastructures.

InnoLight T-OH8ENH-N00 Optical Transceiver Specifications

Optical & Performance Specifications
------------------------------------------------------------
* Maximum Data Rate: 800 Gbps (Aggregated payload)
* Optical Interface Layout: 8 channels x 106.25 Gbps PAM4
* Laser Technology: 850 nm VCSEL array transmitter with PIN receiver
* Modulation Type: PAM4 (Pulse Amplitude Modulation 4-Level)
* Center Wavelength: 850 nm
* Fiber Media Type: Multimode Fiber (MMF) - OM3 / OM4
* Maximum Cable Reach: Up to 50 meters (OM3) / Up to 100 meters (OM4)
* Error Correction: Requires Host-side System FEC

Electrical & Physical Hardware
------------------------------------------------------------
* Module Form Factor: OSFP (with top-integrated thermal cooling fins)
* Electrical Interface: 8 channels x 106.25 Gbps electrical host layout (800GAUI-8)
* Optical Connector Type: MPO-12 APC or MPO-16 APC
* Management Interface: I2C serial interface, OSFP MSA and CMIS compliant
* Telemetry Monitored: Real-time optical diagnostics, temperature, voltage
* Power Consumption: Maximum 14.0W to 16.0W peak power envelope
