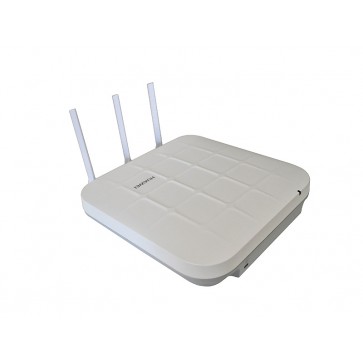

Huawei AP5130DN-FAT-DC Indoor Access Point

Huawei AP5130DN-FAT-DC provides 802.11n wireless access networks for place with simple building structure, small size, dense users and high capacity demands small scale of business. Huawei AP5130DN-FAT-DC uses DC power supply and supports energy-efficient, new-generation 3 x 3 MIMO chip providing up to 1.75 Gbit/s for each radio frequency. FAT version of access point has no require for the wireless controller to manage and it can convert to fit AP when needed.

Huawei AP5130DN-FAT-DC also supports external antenna, IPv4/IPv6 dual stack and can be configured as a Fat AP, Fit AP or in 80211.n networks (WDS or mesh) for maximum flexibility. The comprehensive security features include group-based user access control and multiple authentication and encryption modes as well as rogue AP and STA detection, WIDS, and WIPS.

Huawei AP5130DN-FAT-DC AP features and specifications:

* Radio Protocol: 802.11a/b/g/n/ac

* 3 x 3 MIMO

* Maximum Speed: 1.75 Gbit/s

* Maximum Transmit Power: 25 dBm (combined power)

* Maximum Number of Concurrent Users: ≤ 256

* Antenna: Removable RP-SMA antenna/2.4 GHz: 3.5 dBi, 5 GHz: 4 dBi

* Maximum Power Consumption: 12.95W

* Operating Temperature:–10℃ to 50℃

* Power Input: 12V DC ±10%

* PoE: –48V DC (in compliance with IEEE 802.3af/at)

* Dustproof and waterproof grade: IP41

* Supports multiple authentication and encryption modes, rogue AP detection, WIDS, and WIPS

* Integrated antennas provide omnidirectional coverage without coverage holes

* Dimensions (H x W x D): 220 mm x 220 mm x 53 mm

* Weight: 1.7kg
