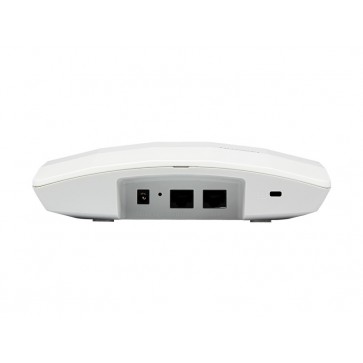

Huawei AP5010DN-AGN-FAT-DC Indoor Access Point

Huawei AP5010DN-AGN-FAT-DC wireless AP offers superior value and flexibility with 2.4 GHz and 5 GHz radios, IEEE 802.11a/b/g/n standards compliance, and Fit AP or Fat AP operation. It supports MIMO technology, provide wider coverage, and offer services simultaneously on 2.4 GHz and 5 GHz frequency bands to connect more users. Huawei AP5010DN-AGN-FAT-DC is recommended for SMEs and high user-density locations such as enterprise offices, campuses, hospitals, large shopping malls, and exhibition centers.

Huawei AP5010DN-AGN-FAT-DC Access Point features and specifications:

* 2 x 2 MIMO chip and provides up to 300 Mbit/s for each radio frequency

* Comprehensive security includes group-based user access control and multiple authentication and encryption modes as well as rogue AP and STA detection, WIDS, and WIPS

* Supports 2.4 GHz and 5 GHz frequency bands for data rates up to 600 Mbit/s

* Supports IPv4/IPv6 dual stack and can be configured as a Fat AP, Fit AP, or wireless bridge

* Use with an AC and Network Management System (NMS) to monitor network performance in real time

* Power Input: 12V DC ± 10%

* PoE: –48V DC (in compliance with IEEE 802.3af/at)

* Maximum Number of Concurrent Users: ≤ 128

* Maximum Power Consumption: 9.5W

* Operating Temperature: –10℃ to +50℃

* Antenna Type/Antenna Gain: Built-in antenna/2.4 GHz: 4 dBi, 5 GHz: 5 dBi

* Maximum Transmit Power: 20 dBm (combined power)

* Wireless Protocol: 802.11a/b/g/n, 2.4 GHz and 5 GHz, 2 X 2 MIMO

* Maximum Speed: 600 Mbit/s

* Dimensions (H x W x D): 180 mm x 180 mm x 50 mm
