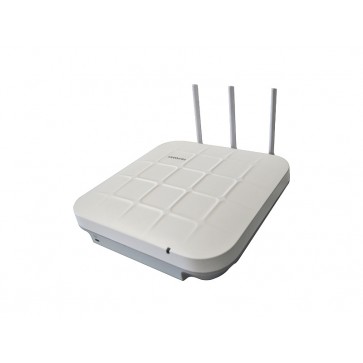

Huawei AP5130DN Wireless Access Point
* Removable RP-SMA antenna
* 2.4 GHz and 5 GHz frequency bands
* IEEE 802.11a/b/g/n/ac
* 3 x 3 MIMO technology
* Maximum Speed: 1.75 Gbit/s
* Maximum Number of Concurrent Users: ≤ 256
Availability: In stock
Product Downloads
Huawei AP5130DN is a fast, reliable Huawei's latest-generation 802.11ac Wave 1 access point supporting multiple authentication and encryption modes, rogue AP detection, WIDS, and WIPS, as well as unified intelligent user access and mobility management when coupled with an AC or NMS. Integrated antennas provide omnidirectional coverage without coverage holes; available with flexible external antennas.
Huawei AP5130DN makes a major leap in Wi-Fi access from 100M to GE and meet the bandwidth requirements of largebandwidth services such as High Definition (HD) video streams, multimedia, and desktop cloud services, delivering smooth and highquality wireless services to enterprise users.
Huawei AP5130DN AP features and specifications:
* Radio Protocol: 802.11a/b/g/n/ac
* 3 x 3 MIMO
* Maximum Speed: 1.75 Gbit/s
* Maximum Transmit Power: 25 dBm (combined power)
* Maximum Number of Concurrent Users: ≤ 256
* Antenna: Removable RP-SMA antenna/2.4 GHz: 3.5 dBi, 5 GHz: 4 dBi
* Maximum Power Consumption: 12.95W
* Operating Temperature:–10℃ to 50℃
* Power Input: 12V DC ±10%
* PoE: –48V DC (in compliance with IEEE 802.3af/at)
* Plug-and-Play (PnP) in Fit AP mode
* Dustproof and waterproof grade: IP41
* Supports multiple authentication and encryption modes, rogue AP detection, WIDS, and WIPS
* Integrated antennas provide omnidirectional coverage without coverage holes
* Dimensions (H x W x D): 220 mm x 220 mm x 53 mm
