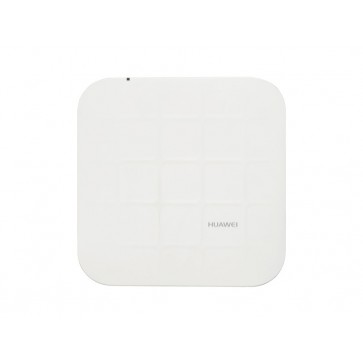

Huawei AP5030DN-S Wireless Access Point

Huawei AP5030DN-S is a cost-effective 802.11ac access point (AP) that provides a rate of up to 1.75 Gbit/s. It is well-designed with rich features and especially applicable to high-density scenarios, including enterprise offices, airports and stations, digital trains, and stadiums, delivering ubiquitous access services.

Huawei AP5030DN-S makes a major leap in Wi-Fi access from 100M to GE and meet the bandwidth requirements of largebandwidth services such as High Definition (HD) video streams, multimedia, and desktop cloud services, delivering smooth and highquality wireless services to enterprise users.

Huawei AP5030DN-S AP features and specifications:

* Radio Protocol: 802.11a/b/g/n/ac

* 3 x 3 MIMO

* Maximum Speed: 1.75 Gbit/s

* Maximum Transmit Power: 25 dBm (combined power)

* Maximum Number of Concurrent Users: ≤ 256

* Antenna: Built-in antenna/2.4 GHz: 4 dBi, 5 GHz: 5 dBi

* Maximum Power Consumption: 12.95W

* Operating Temperature:–10℃ to 50℃

* Storage temperature: -40 ℃ ~ + 70 ℃

* Power Input: 12V DC ±10%

* PoE: –48V DC (in compliance with IEEE 802.3af/at)

* Working humidity: 5% to 95%（Non-condensing）

* Compliance with IEEE 802.3u standards

* Plug-and-Play (PnP) in Fit AP mode

* Dustproof and waterproof grade: IP4

* Altitude: 60m ~ 5000m

* Working pressure: 70kPa ~ 106kPa

* Supports multiple authentication and encryption modes, rogue AP detection, WIDS, and WIPS

* Integrated antennas provide omnidirectional coverage without coverage holes

* Dimensions (H x W x D): 220 mm x 220 mm x 53 mm

* Weight: 1kg
