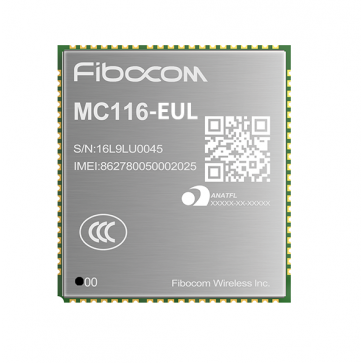

Fibocom MC116-EUL LTE Cat 1 Module

Fibocom MC116-EUL is a high-performance LTE Cat 1 module which supports LTE FDD/ WCDMA/ GSM frequency and the LTE highest speed can reach to 10 Mbps DL/ 5 Mbps UL.The product is developed based on Qualcomm platform and packaged in LCC+LGA which is compatible with Fibocom’s Cat 4 module NL668.

Fibocom MC116-EUL is suitable for the IoT market in Europe & Latin America and has a rich application such as telematics, security, ATM/ POS and Internet of Vehicles etc.

Fibocom MC116-EUL Module Specifications:

* Target region: Europe, Latin America

* Package: LCC+LGA

* Dimension (mm): 32.0 x 29.0 x 2.4

* Frequency bands:
LTE FDD: B1/2/3/4/7/8/20/28
LTE TDD: B38/40/41(120M)
WCDMA: B1/2/5/8
GSM/GPRS/EDGE: 850/900/1800/1900MHz

* Power Supply: <3.4V ~ 4.3V (Typical 3.8V)

* Operating Temp: -35°C ~ +75°C

* Extended Temp: -40°C ~ +85°C

* Data Transmission
LTE FDD (Mbps): 10(DL)/5.1(UL)
LTE TDD (Mbps): 8.2(DL)/3.4(UL)
DC-HSPA+(Mbps): DC-HSDPA+: 42(DL)
HSPA/HSPA+(Mbps): 5.76UL
UMTS(kbps): 384(DL)/384(UL)
EDGE(Kbps): 296(DL)/236.8(UL)
GPRS(Kbps): 107(DL)/85.6(UL)

* Functions
WiFi&BlueTooth NA
SIM ●
eSIM NA
eCALL NA
OpenCPU NA
MUX ●
Dual SIM NA
Jamming Detection NA
USSD ●
STK NA
LBS ●
FOTA DFOTA
OS Drivers: Linux/Windows/Android
GNSS ●
MMS NA
CSD NA
TTS NA
SMS ●
Audio ●
Voice Code NA
Audio Play/Record ●
Protocols: TCP/UDP(S)/HTTP(S)/FTP(S)/IPV4/IPV6/SSL/MQTT/LWM2M

* Interfaces
SIM x1, 1.8V/ 3.0V
USB x1,USB2.0
PCIe NA
UART x2
SPI ●
ADC x2
GPIO ●

* Regulation: RoHS/Reach/CE/UKCA/Anatel/RCM

* Operator: Telstra*

* Industry: GCF
