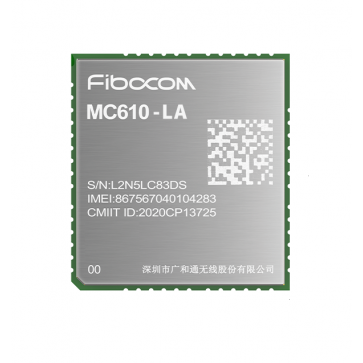

Fibocom MC610-LA LTE Cat1 bis Module

Fibocom MC610-LA is an LTE Cat 1 bis wireless communication module which supports LTE and GSM dualmode communication. Adopting LCC+LGA package, PIN compatible with the MA 510 series compatible modules can be replaced with minimum cost.

In addition, the Fibocom MC610-LA module also provides universal interfaces such as USB/UART/SPI/I2C to meet the needsof various applications in the IoT industry. The product is positioned to coverthe low and medium rate IoT market, such as universal payment, sharing, industrialinterconnection, tracking, vehicle rear mounting and other applicationscenarios, providing a perfect high-speed experience for customers in the abovefields.

Fibocom MC610-LA Module Specifications:

* Target Region：Latin America

* Package: LCC+LGA

* Dimension (mm): 26.2x24.2x2.1

* Frequency bands:
LTE FDD: B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28/66
LTE TDD: B34/38/39/40/41
WCDMA: NA
GSM/GPRS/EDGE: 850/900/1800/1900MHz

* Power Supply: <3.4V ~ 4.3V (Typical 3.8V)

* Operating Temp: -35°C ~ +75°C

* Extended Temp: -40°C ~ +85°C

* Data Transmission
LTE FDD (Mbps): 10.3(DL)/5.1(UL)
LTE TDD (Mbps): 9.1(DL)/3.1 (UL)
GPRS(Kbps): 85.6 (DL)/85.6 (UL)

* Functions
WiFi&BlueTooth: NA
BLE: NA
OpenCPU: NA
FOTA: DFOTA
OS Drivers: Linux/Windows/Android
GNSS: NA
TTS: NA
SMS: ●
Audio: NA
Protocols TCP(S)/UDP/HTTP(S)/FTP(S)/IPV4/SSL/
MQTT/NTP/NITZ/SSL/TLS/Ping

* Interfaces
SIM: x2, 1.8V/ 3.0V
USB: x1,USB2.0
UART: x3(Standard Edition) x4(Open Edition)
ADC: ●
I2C: ●
SPI: ●
SDIO: ●
GPIO: ●

* Regulation: CE*/RoHS2.0*/REACH*/FCC*/Anatel*/CCC*/SRRC*
