Fibocom L610-LA-MiniPCIe LTE Cat1 Module

* Fibocom LTE Cat1 Module


* Form factor: Mini PCIe


* Support LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66


* LTE DL 10Mbps, UL 5Mbps


* Target region: Latin America

Sign up for price alert

Availability: In stock

$89.00

Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!

Details
Details

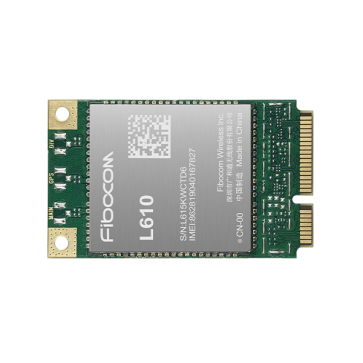

Fibocom L610-LA MiniPCIe is an LTE Cat1 wireless communication module, in Mini PCIe package. The product supports the FDD band and GSM 850/900/ 1800/1900MHz, with a size of 50.8 × 29.85 × 3.4 mm.

Fibocom L610-LA MiniPCIe is oriented to the frequency bands of major operators in Latin America, and L610-CN MiniPCIe and L610-EU MiniPCIe of the same series is aimed at the frequency bands of major operators in Asia and Europe. The product positioning covers the Internet of things market with medium and low rates, such as pan payment, sharing, industrial interconnection, tracking, automotive aftermarket and other application scenarios. Provide perfect high-speed experience for customers in the above fields.

Fibocom L610-LA-MiniPCIe Module Specifications:

* LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66

* Form factor: Mini PCIe

* Operating Temperature: -30℃~+75℃

* Storage Temperature: -40℃~+90℃

* Operating Voltage: 3.3V~4.3V typical 3.8V

* TX Power
- 850/900MHz: 33dBm±2dB
- 1800/1900MHz: 30dBm±2dB
- FDD:B1/2/3/4/5/7/8/28/66: 23dBm±2dB

* AT Command Set: 3GPP TS 27.007 and 27.005, and proprietary FIBOCOM AT commands

* Rx Sensitivity
- GSM:850/900MHz: -109.5dBm
- GSM:1800/1900MHz: -108dBm
- FDD:B1/3: -98dBm
- FDD:B2/4/7/66: -97dBm
- FDD:B5/8/28: -98.5dBm


* Data rates:
- LTE FDD Rel.13: 10MbpsDL/5Mbps UL
- GPRS: 85.6KbpsDL/85.6Kbps UL(multi-slot class 12)


* MUX: Basic Mode

* SMS: MO/MT Text and PDU modes

* DFOTA/FOTA


* Interfaces
- Antenna Card: Main x 1
- USIM: 3.0V/1.8V
- USB: 2.0 x1

* Drivers: Linux/Android/Windows
