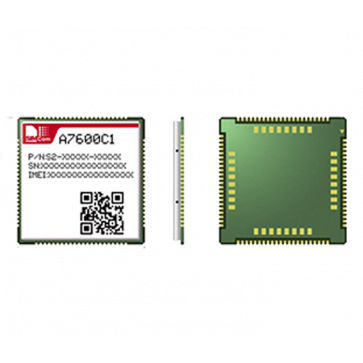

SIMCOM A7600C1 LTE Cat1 LGA + LCC Module

SIMCOM A7600C1 is the LTE Cat 1 module which supports wireless communication modes of LTE-TDD/LTE-FDD/GSM*/GPRS*/EDGE*. It supports maximum 10Mbps downlink rate and 5Mbps uplink rate.

SIMCOM A7600C1 adopts LCC+LGA form factor and is compatible with SIM5320/SIM5360 series(UMTS/HSPA+ modules), and SIM7600/SIM7600-H series(LTE modules), which enables smooth migration from 3G products to LTE products, and greatly facilitates more compatible product design for the customer needs.

SIMCOM A7600C1 supports multiple built-in network protocols, supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function. Meanwhile A7600C1 integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, I2C, GPIO, which is suitable for main IOT applications such as telematics, surveillance devices, POS, industrial routers, and remote diagnostics etc.

SIMCOM A7600C1 Module Specifications:

General Features

* Frequency Bands:
- TDD-LTE B34/B38/B39/B40/B41
- FDD-LTE B1/B3/B5/B8
- GSM/GPRS/EDGE 900/1800 MHz

* Supply Voltage: 3.4V ~ 4.2V, Typ: 3.8V

* Control Via AT Commands

- Operation temperature: -40℃ to +85℃

- Dimensions : 30.0*30.0*2.5mm

- Weight : 4.6±0.1g

* Data Transfer

- LTE CAT1：Uplink up to 5Mbps,Downlink up to 10Mbps

- EDGE Class: Uplink/Downlink up to 236.8Kbps

- GPRS: Uplink/Downlink up to 85.6Kbps

* Other Features

- USB Driver for Microsoft Windows 7/8/10

- USB Driver for Linux /Android

- RIL supporting for Android 5.0/6.0/7.0/8.0/9.0

- Firmware update via USB/FOTA

- TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTP/DNS

- RNDIS/PPP/ECM

- SMS

- SSL

- Wifi-scan*

* Interfaces

- USB2.0

- UART

- (U)SIM card(1.8V/3V )

- PCM*

- MMC/SD

- Keypad*

- LCM*

- Camera*

- ADC

- I2C

- GPIO

- Antenna: Primary

* Certifications

- 3C/SRRC/NAL

- RoHS*/REACH*
