SIMCOM SIM7030 LTE NB-IoT Module
* LTE Speed: DL 26.15Kbps, UL 62.5Kbps
* Control Via AT Commands
* Form factor: 40 pin LCC package
Availability: In stock

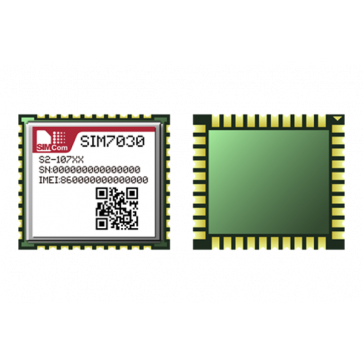

SIMCOM SIM7030 is a multi-band NB-IoT wireless communication module in a 40 PIN LCC package. SIMCOM SIM7030 has a wealth of hardware interfaces, including serial port, GPIO, SPI, ADC, etc., which also makes the module rich in scalability, providing great convenience for users' product development. The SIM7030 module is the optimal solution for low-latency, low-power, low-throughput applications, making it ideal for IoT applications such as metering, remote control, asset tracking, remote monitoring, telemedicine, and shared bicycles.
SIMCOM SIM7030 module specifications:
* Category: LTE NB-IoT
* Form factor: 40 pin LCC package
* Support LTE FDD Bands: B1/B3/B5/B8
* Uplink: 62.5Kbps, Downlink: 26.15Kbps
* Control via AT Commands
* SMS: Text and PDU mode
* Other Features
- Upgrade software via serial port
- TCP/UDP
- LWM2M/COAP
- MQTT
- OneNET
- FTP/HTTP/HTTPS*/SSL*/DTLS*
- FOTA *
- PSM/eDRX
* Interfaces
- Serial port
- USIM card (1.8V/3V)
- SPI
- I2C
- Wakeup _IN
- Wakeup_OUT
- GPIO
- ADC
* Consumption
- PSM: 5 uA
* Supply voltage range: 2.1V-3.6V, typical value: 3.3V
* Operation temperature: -40℃ to +85℃
* Dimensions: 18 x 16 x 2.4mm
* Weight: 1.3 g ± 0.2 g
* Certifications(plan):
- CCC / CTA/ TA
- RoHS/REACH
- China Mobile
