Lierda NB-IoT USB Dongle

Lierda NB-IoT USB Dongle is developed base on Neul Boudica chipset. The NB-IoT USB Dongle, on the one hand, can be used to evaluate and learn NB-IoT software instructions, and on the other hand it can test the functionality and performance of NB-IoT. The device with small size, easy to use features.

Lierda NB-IoT USB Dongle Specifications：

* Working Frequency Band： Band 1, 3, 5, 8, 20

* Out power: 23dBm

* Sensitivity：-129dBm

* Compliant with 3GPP

* Variant Models：

- NB-IoT Dongle(B5): LSDCTL0611-04P2(old version), LSD4NBT-B205000002 (New Version)
- NB-IoT Dongle(B8): LSDCTL0611-05P2(old version), LSD4NBT-B208000002 (New Version)
- NB-IoT Dongle(B20): LSDCTL0611-06P2(old version),LSD4NBT-B220000002 (New Version)

- NB-IoT Dongle(B1/B3/B5/B8/B20/B28): LSD4NBT-B203000003

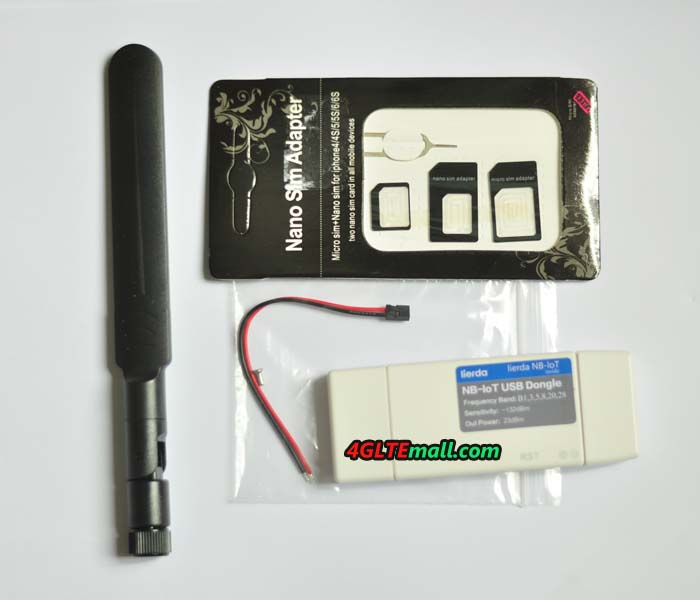

Equipment List:

* NB-IoT USB Dongle

* NB-IoT Antenna

* Current Test Leads

* Users Guide

Hardware support:

* USB-A interface

* SMA antenna interface

* SIM card slot

* current test selector switch

* current test interface

* reset button

* JTAG debug interface.

Software support:

* Embedded Ethernet protocol stack, support Boudica chip RX, TX, Sleep, Idle and other state switch AT instruction.

* Support LogView，which is used to debug the hardware and software of Boudica chipset.

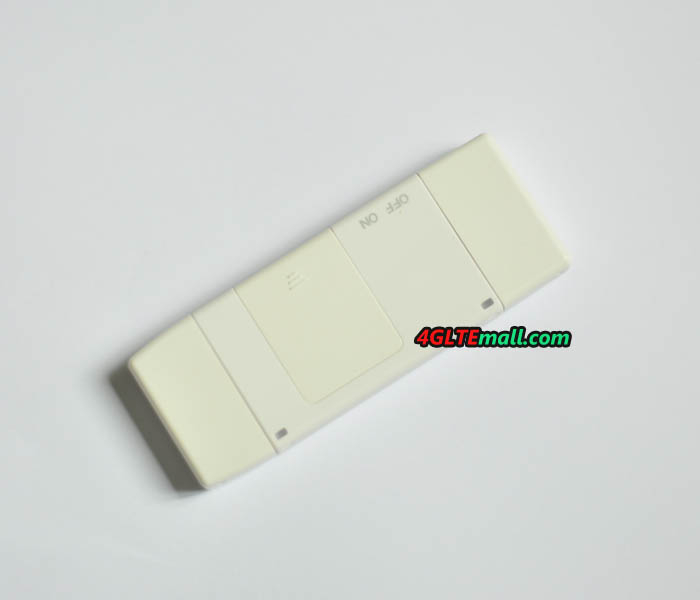

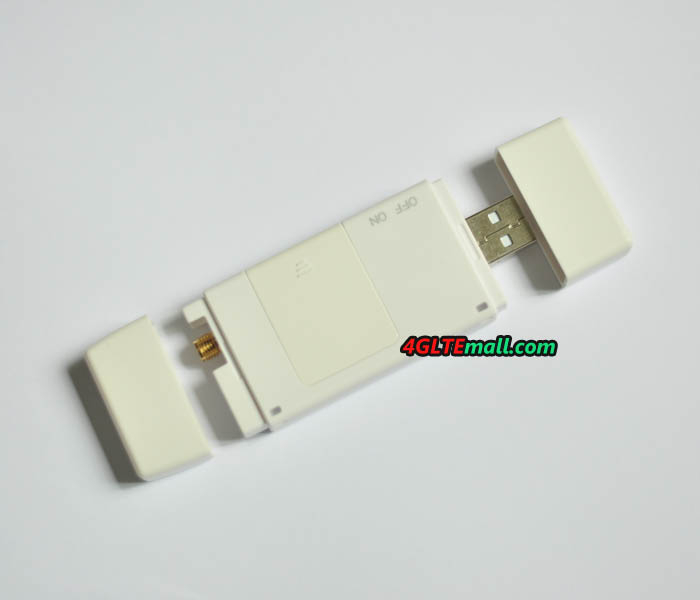

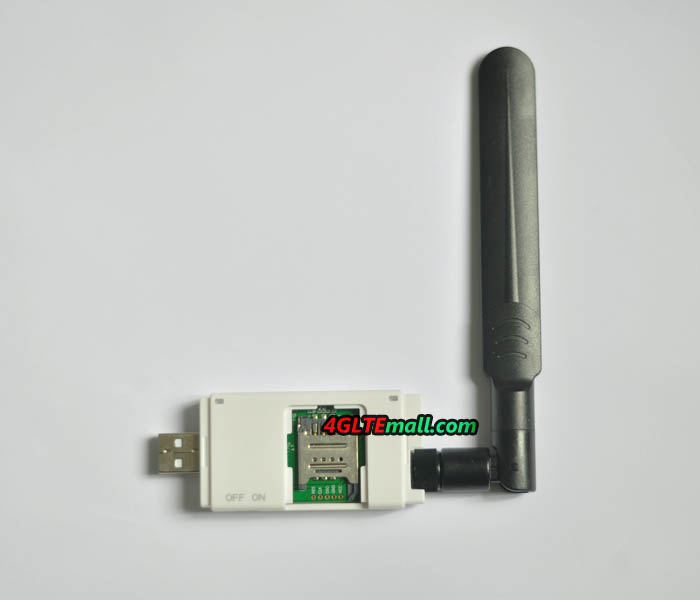

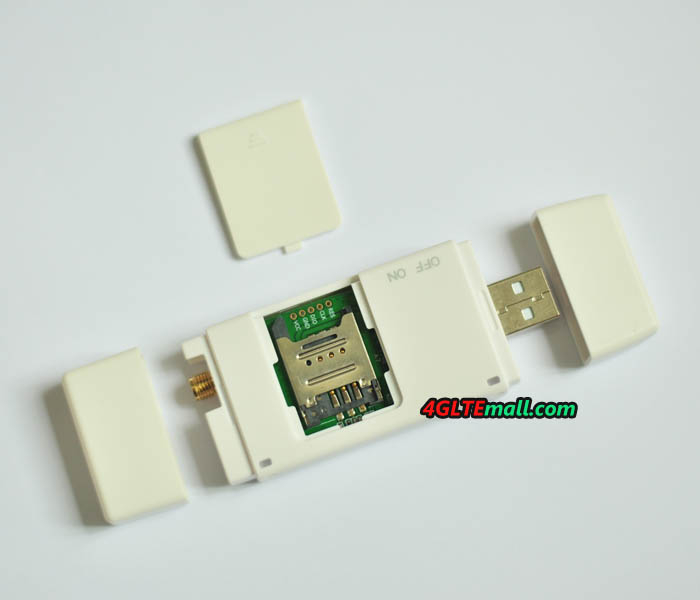

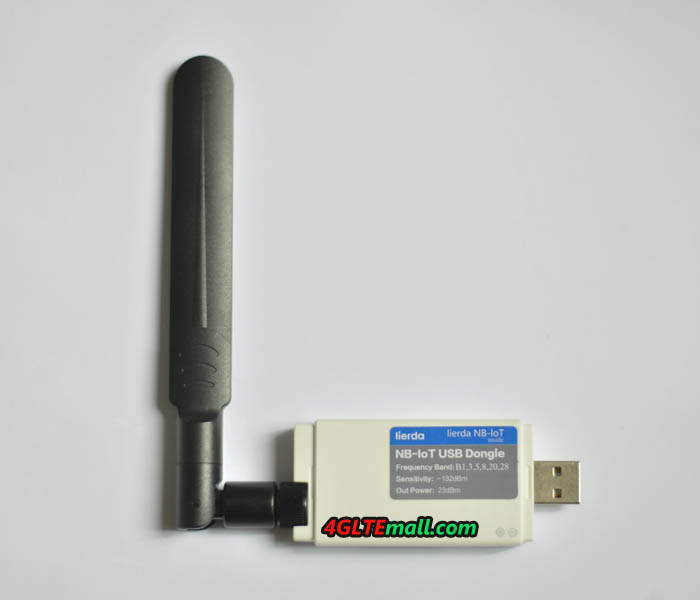

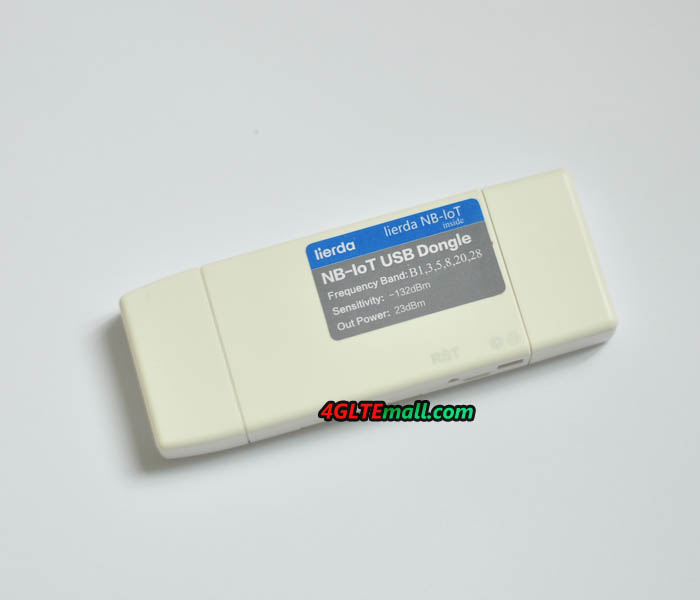

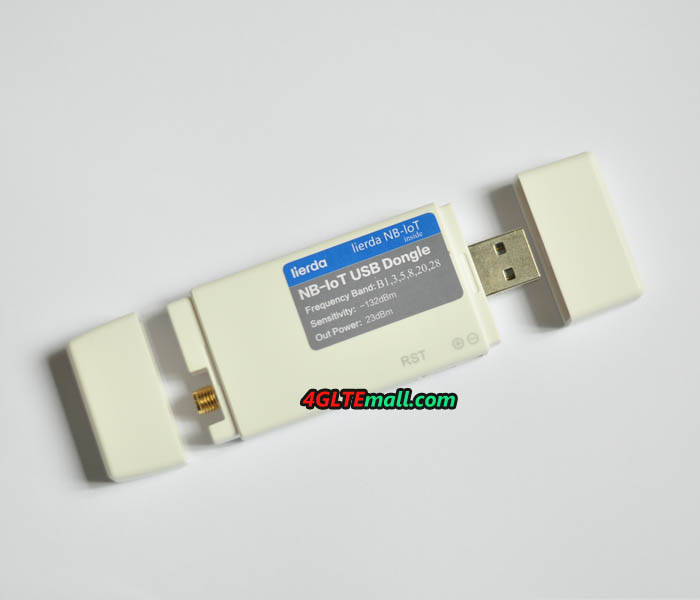

Lierda LTE NB-IoT Dongle images:
