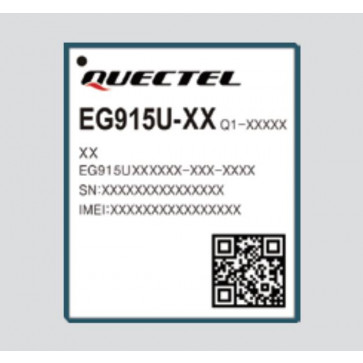

Quectel EG915U 4G LTE Cat1 LGA Module

Quectel EG915U 4G Module Specifications：

* Product type: 4G Module

* Chipset:

* LTE Category: LTE Cat1

* Form factor: LGA

* Dimensions: 23.6 × 19.9 × 2.4mm

* Frequency Bands:
Quectel EG915U-CN (For China and India market)
- LTE-FDD Bands: B1/B3/B5/B8
- LTE-TDD Bands: B34/B38/B39/B40/B41
- GSM Bands:B3/B8

Quectel EG915U-EU(For Europe market)
- LTE-FDD Bands: B1/B3/B5/B7/B8/B20/B28
- GSM Bands: B2/B3/B5/B8

Quectel EG915U-LA (For Latin American market)
- LTE-FDD Bands: B2/B3/B4/B5/B7/B8/B28/B66
- GSM Bands: B2/B3/B5/B8

* Weight：2.48g

* Temperature range:
- -35°C ~ +75°C (Operation Temperature)
- -40°C ~ +85°C (Extended Temperature)

* Data Transmission Rates:
- LTE: Max. 10Mbps (DL)/ Max. 5Mbps (UL)
- GPRS: Max. 85.6Kbps (DL)/ Max. 85.6bps (UL)

* Protocols: TCP/UDP/PPP/FTP/HTTP/NTP/PING/QMI/NITZ/CMUX/HTTPS/SMTP/MMS/FTPS/SMTPS/SSL/FILE

* Interfaces:
- (U)SIM: 1.8V/ 3.0V
- UART x 3
- USB 2.0
- IIL x 1
- PCM
- SD: ?
- SGMII: N/A
- ADC X 2
- Antenna: Main antenna, BT/WiFi scan antenna

* Enhanced Features
- DTMF:
- DFOTA: N/A
- FOTA
- Audio replay/recording
- QuecFile

* Electrical Features
- Supply Voltage Range: 3.3V~4.3V, 3.8V Typ.
- Power Consumption
>30μA @Power off
>1.3mA @Sleep, Typ.
>13mA @Idle

* Software Features
- USB Serial Driver
> Windows 7/8/8.1/10,
> Linux 2.6~5.12,
> Android 4.x ~ 11.x
- RIL Driver: Android 4.x ~ 11.x
- GNSS Driver: N/A
- RNDIS Driver: Windows 7/8/8.1/10, Linux 2.6 ~ 5.12
- ECM Driver: Linux 2.6 ~ 5.12
- (U)SIM card insert inspect
- Firmware update: USB or FOTA

* Certifications/Approvals: CE*/RCM*/GCF*/Anatel*

* Carriers: China Mobile/China Unicom/China Telecom

* Applications: POS, POC, ETC, Data card, Energy control, City management and Industrial PDA etc....
