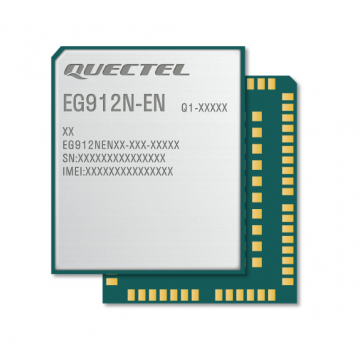

Quectel EG912N-EN 4G LTE 450 Cat 1 module

Quectel EG912N-EN is an LTE 450 Cat 1 wireless communication module optimized specially for M2M and IoT applications. It supports 450MHz and offers a maximum 10Mbps downlink rate and 5Mbps uplink rate. Designed in a compact and unified form factor, EG912N-EN is compatible with Quectel’s GSM/GPRS M95, LTE Cat M1/Cat NB2/EGPRS BG95, LTE Cat M1/Cat NB1/EGPRS BG96, LTE Cat 1 EG91 and LTE Cat 4 EG95 modules, which allows flexible switching among different networks.

Quectel EG912N-EN uses a laser engraving process to ensure a better appearance, strong metal texture, better heat dissipation, and durable label information, which makes it more suitable for automation requirements. A rich set of internet protocols, industry-standard interfaces and abundant functionalities (USB serial drivers for Windows 7/ 8/ 8.1/ 10/ 11, Linux and Android) allow the module to serve a wide range of M2M and IoT applications such as smart metering, OTT, and IoT gateways.

Quectel EG912N-EN 4G Module Specifications：

* Product type: 4G Module

* Chipset:

* LTE Category: LTE 450 Cat 1 module

* Form factor: LGA

* Dimensions: 29 × 25 × 2.4mm

* Frequency Bands:
- LTE-FDD Bands: B1/B3/B5/B7/B8/B20/B28/B31/B72
- GSM Bands: B3/B8

* Weight：2.46g

* Temperature range:
- -35°C ~ +75°C (Operation Temperature)
- -40°C ~ +85°C (Extended Temperature)

* Data Transmission Rates:
- LTE: Max. 10Mbps (DL)/ Max. 5Mbps (UL)
- EDGE: Max. 236.8Kbps (DL)/ Max. 236.8bps (UL)
- GPRS: Max. 85.6Kbps (DL)/ Max. 85.6bps (UL)

* Protocols: TCP/UDP/PPP/FTP/HTTP/NTP/PING/QMI/NITZ/CMUX/HTTPS/SMTP/MMS/FTPS/SMTPS/SSL/FILE

* Interfaces:
- (U)SIM: x 2
- UART x 2
- USB x 1
- I2C x 1
- PCM x 1
- SDIO: N/A
- ADC X 2
- Antenna: 1 x Main antenna

* Electrical Features
- Supply Voltage Range: 3.3V~4.3V, 3.8V Typ.
- Power Consumption
30μA @Power off
1.28mA @Sleep, Typ.
20.65mA @Idle

* Software Features
- USB Serial Driver
> Windows 7/8/8.1/10/11,
> Linux 2.6~6.7,
> Android 4.x ~ 13.x
- RIL Driver: Android 4.x ~ 13.x
- GNSS Driver: N/A
- RNDIS Driver: Windows 7/8/8.1/10/11, Linux 2.6 ~ 6.7
- ECM Driver: Linux 2.6 ~ 6.7
- (U)SIM card insert inspect
- Firmware update: via USB /DFOTA

* Certifications/Approvals: CE*/RCM*/UKCA/FCC/Anatel*

* Carriers: China Mobile/China Unicom/China Telecom

* Applications: POS/POC/ETC, shared equipment, data cards, energy control and monitoring, saftety and protection, industrial PDAs.
