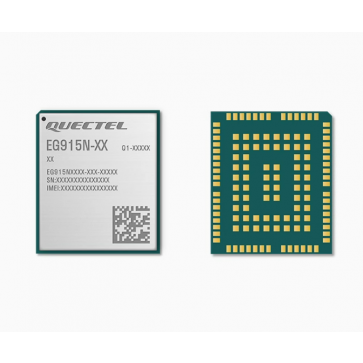

Quectel EG915N 4G LTE Cat1 Module

Quectel EG915N is a series of LTE Cat 1 modules optimized specially for M2M and IoT applications. Adopting the 3GPP Rel-9 LTE technology, it delivers maximum data rates of 10Mbps downlink and 5Mbps uplink. Designed in a compact and unified form factor, EG915N series modules are compatible with Quectel’s GSM/GPRS M95 module, LTE Cat M1/Cat NB2/EGPRS BG95 series modules, LTE Cat M1/Cat NB1/EGPRS BG96 modules, LTE Cat 1 EG91 series modules and LTE Cat 4 EG95 series modules, which allows flexible switching between different networks.

A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB serial drivers for Windows 7/8/8.1/10/11, Linux, Android) allow the module to serve a wide range of M2M and IoT applications such as industrial routers, industrial PDAs, tablet PCs, and digital signage.

Quectel EG915N 4G Module Specifications：

* Product type: 4G Module

* Chipset:

* LTE Category: LTE Cat1

* Form factor: LGA

* Dimensions: 23.6 × 19.9 × 2.4mm

* Frequency Bands:

Quectel EG915N-EU(For Europe market)
- LTE-FDD Bands: B1/B3/B7/B8/B20
- GSM Bands: B3/B8

Quectel EG915N-EA (Europe/Asia)
- LTE-FDD Bands: B1/B3/B7/B8/B20/B28
- GSM Bands: B3/B8

Quectel EG915N-LA (Latin Amereica)
- LTE-FDD Bands: B2/B3/B4/B5/B7/B8/B28/B66
- GSM Bands: B2/B3/B5/B8

* Weight：2.46g

* Temperature range:
- -35°C ~ +75°C (Operation Temperature)
- -40°C ~ +85°C (Extended Temperature)

* Data Transmission Rates:
- LTE: Max. 10Mbps (DL)/ Max. 5Mbps (UL)
- EDGE: Max. 236.8Kbps (DL)/ Max. 236.8bps (UL)
- GPRS: Max. 85.6Kbps (DL)/ Max. 85.6bps (UL)

* Protocols: TCP/UDP/PPP/FTP/HTTP/NTP/PING/QMI/NITZ/CMUX/HTTPS/SMTP/MMS/FTPS/SMTPS/SSL/FILE

* Interfaces:
- (U)SIM: x 2
- UART x 3
- USB x 1
- I2C x 1
- PCM x 1
- SDIO: N/A
- ADC X 2 (optional)
- Antenna: 1 x Main antenna, 1 x GNSS antenna(optional)

* Electrical Features
- Supply Voltage Range: 3.3V~4.5V, 3.8V Typ.
- Power Consumption
24μA @Power off
1.4mA @Sleep, Typ.
20.97mA @Idle

* Software Features
- USB Serial Driver
> Windows 7/8/8.1/10/11,
> Linux 2.6~6.7,
> Android 4.x ~ 13.x
- RIL Driver: Android 4.x ~ 13.x
- GNSS Driver: N/A
- RNDIS Driver: Windows 7/8/8.1/10/11, Linux 2.6 ~ 6.7
- ECM Driver: Linux 2.6 ~ 6.7
- (U)SIM card insert inspect
- Firmware update: via USB /DFOTA

* Certifications/Approvals: CE*/RCM*/UKCA/FCC/Anatel*

* Carriers: China Mobile/China Unicom/China Telecom

* Applications: Telematics, smart metering, mobile POS terminals, gateway, safety, tracking and tracking, remote maintenace and control, networking, mobile computing, healthcare
