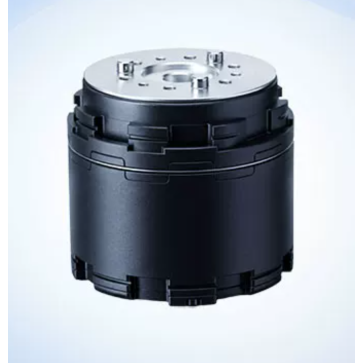

Unitree IM6014 Joint Actuator

Unitree IM6014 (Model: N6014B-12.6) is a high-performance, bionic robot joint actuator designed by Unitree Robotics. It is specifically engineered for high-torque applications like the main leg joints of quadruped robot dogs, humanoid robots, and precise multi-joint robotic arms.

Unitree IM6014 Joint Actuator Specifications:

* Motor Model: N6014B-12.6

* Peak Torque (Opposite to rotation): 34.4 N.m

* Peak Torque (Same as rotation): 31.7 N.m

* Max No-Load Speed: 54.2 rad/s (approx. 517 RPM) @ 60V

* Input Voltage Range: 24V – 75V

* Maximum Line Current: 40A

* Reduction Gear Ratio: 12.66:1 (Exact: 3:38 planetary reduction)

* Motor Weight: 535 g

* Dimensions: φ65 × 60 mm (Diameter × Length)

Materials & Build Quality
---------------------------------------------------------
• Housing Material: Structured out of aerospace-grade aluminum alloy combined with high-strength engineering plastic for low inertia and excellent impact resistance.
• Gear Componentry: Formed entirely of precision metal gears to handle massive sudden reversals and shock loads.
• Heavy-Duty Bearings: Fitted with high-quality precision bearings designed to bear axial and radial loads during robot jumping or heavy manipulation.

Control, Communication & Feedback
---------------------------------------------------------
• Dual Absolute Encoders: Features 15-bit resolution absolute encoders on both the internal motor rotor-side and the external output-side. This eliminates the need for homing cycles and provides ultra-precise positional awareness.
• High-Speed RS-485 Bus: Communicates over a multi-drop RS-485 bus protocol running at 4,000,000 bps to 6,000,000 bps (8-bit, 1 stop bit, no parity).
• Hybrid FOC Control: Driven by an integrated Field-Oriented Control (FOC) board. It simultaneously controls torque, angle, velocity, stiffness, and damping variables at an ultra-low latency control frequency.
• Smart Thermal Management: An active thermal protective model checks internal temperature loops 400 times per second. The driver automatically alerts and initiates thermal throttling or shutdown if the driver board passes 90°C or the motor winding exceeds 130°C.

Cabling & Expansion Design
---------------------------------------------------------
• Dual-Port Daisy Chain: Built with integrated dual ports (utilizing an XT30 2+2 style power/signal configuration) allowing multiple motors to be linked together in series. This reduces total wire length across multiple robotic limbs.
