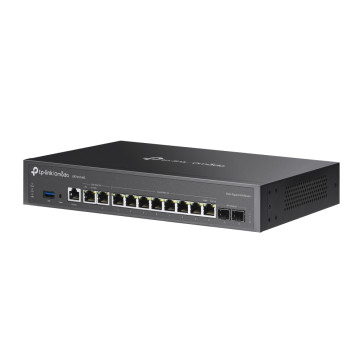

TP-Link ER7412-M2 Omada Multi-Gigabit VPN Gateway

TP-Link Omada ER7412-M2 VPN Router Specifications:

SECURITY
----------------------------------------------------
* Access Control:
• Source/Destination IP-Based ACL
• Stateful ACL
• IPv4/IPv6 ACL
• Location Based ACL

* Filtering
• WEB Group Filtering
• URL Filtering
• Web Security

* ARP Inspection
• Sending GARP Packets
• ARP Scanning
• IP-MAC Binding

* Attack Defense
• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN

HARDWARE FEATURES
----------------------------------------------------
* Standards and Protocols
• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP

* Interface
• 1× 2.5G RJ45 WAN/LAN Port
• 1× 2.5G RJ45 WAN/LAN Port
• 2× Gigabit SFP WAN/LAN Ports
• 8× Gigabit RJ45 WAN/LAN Ports

• 1× RJ45 Console Port
• 1× USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle)

* Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
• 2500BASE-T: UTP category 5e, 6 cable (Max 100 m)

* Button: Reset Button

* Power Supply: 100–240 VAC, 50/60 Hz

* PoE Budget: -

* Flash: 128 MB NAND

* DRAM: 1 GB DDR4

* Dimensions ( W x D x H ): 11.6×7.1×1.7 in (294×180×44 mm)

* Protection: 4 kV surge protection

* Enclosure: Steel

* Mounting:
• Desktop
• Rackmountable

* Max Power Consumption: 18.5W (With USB 3.0 connected)

PERFORMANCE
----------------------------------------------------
* IPS Throughput: 523Mbps

* DPI Throughput: 2.2Gbps

* GRE
• Unencrypted: 1153.0 Mbps
• Encrypted: 559.2 Mbps

* WireGuard VPN: 771.6 Mbps

* Concurrent Session: 1,000,000

* New Sessions /Second: 7,000

* NAT (Static IP): 2345.71 Mbps / 2351.22 Mbps

* NAT(DHCP): 2353.41 Mbps / 2353.40 Mbps

* NAT(PPPoE): 2336.52 Mbps / 2336.08 Mbps

* NAT (L2TP): 1937.53 Mbps / 1761.82 Mbps

* NAT (PPTP): 1757.54 Mbps / 2011.33 Mbps

* IPsec VPN Throughput
• ESP-SHA1-AES256: 1125.60 Mbps
• ESP-SHA256-AES256: 1133.1 Mbps
• ESP-SHA384-AES256: 1126.6 Mbps
• ESP-SHA512-AES256: 1132.8 Mbps

*OpenVPN: UDP: 266.2 Mbps

* L2TP VPN Throughput
• Unencrypted: 2724.5 Mbps
• Encrypted: 1018.4Mbps

* SSL VPN Throughput: 263.1 Mbps

* 66 Byte Packet Forwarding Rate: 1833 Mbps / 1835 Mbps

* 1,518 Byte Packet forwarding rate: 2461 Mbps / 2461 Mbps

BASIC FUNCTIONS
----------------------------------------------------
* WAN Connection Type
• Static IP/Dynamic IP
• PPPoE (supports MRU Configuration)
• PPTP
• L2TP
• Mobile Broadband: 4G/3G modem for backup via USB port

* MAC Clone: Modify WAN/LAN MAC Address

* DHCP
• DHCP Server
• DHCPv6 PD Server (only in Standalone Mode)
• DHCP Options Customization
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP

* IPv6: StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode

* VLAN: 802.1Q VLAN

* IPTV: IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

ADVANCED FUNCTIONS
----------------------------------------------------
* Advanced Routing
• Static Routing
• Policy Routing
• RIP (only in Standalone Mode)
• OSPF (only in Standalone Mode)

* Bandwidth Control
• IP/Port-based Bandwidth Control

* Load Balance
• Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing§, Failover)
• Online Detection

* Load Balance
• Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing, Failover)
• Online Detection

* NAT
• One-to-One NAT§
• Multi-Net NAT
• Port Forwarding
• Port Triggering§
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP

* Session Limit: IP-based Session Limit

VPN
----------------------------------------------------
* GRE: Only in Standalone Mode

* SD-WAN: 80 Tunnels

* IPsec VPN
• 150 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IPsec Failover
• IKE v1/v2
• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)

* PPTP VPN
• PPTP VPN Server
• PPTP VPN Client (15)**
• 150 Tunnels
• PPTP with MPPE Encryption

* L2TP VPN
• L2TP VPN Server
• L2TP VPN Client (15)**
• 150 Tunnels
• L2TP over IPSec

* OpenVPN
• OpenVPN Server
• OpenVPN Client (11)**
• 121 OpenVPN Tunnels
• "Certificate + Account" Mode
• Full Mode

* WireGuard VPN • 20 Tunnels

AUTHENTICATION
----------------------------------------------------
Web Authentication
• No Authentication
• Simple Password*
• Hotspot (Local User/Voucher*/SMS*/Radius*)
• External Radius Server
• External Portal Server*
• LDAP

MANAGEMENT
----------------------------------------------------
* Omada App: Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

* Centralized Management
• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller

* Cloud Access: Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

* Service: Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)

* Maintenance
• Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3*
• Diagnostics (Ping & Traceroute)§
• NTP Synchronize§
• Port Mirroring
• CLI (only in Standalone Mode)
• Syslog Support

* Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.

* Management Features
• Automatic Device Discovery*
• Batch Configuration*
• Batch Firmware Upgrading*
• Intelligent Network Monitoring*
• Abnormal Event Warnings*
• Unified Configuration*
• Reboot Schedule*

OTHERS
----------------------------------------------------
* Certification: CE, FCC

* Package Contents
• ER7412-M2
• Power Cord
• Quick Installation Guide
• Rackmount Kit
• RJ45 Console Cord

* System Requirements:
• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11
• MAC OS, NetWare, UNIX or Linux

* Environment
• Operating Temperature: 0–45 ℃ (32–113℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% non-condensing
